Products – Portable Drum Handling Equipment

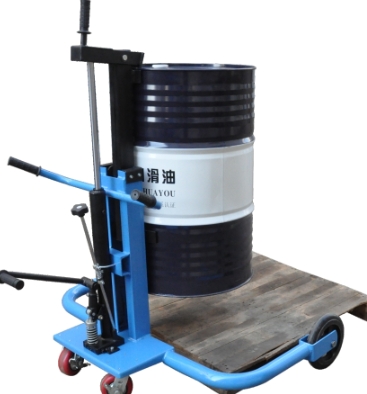

Name:DTW400A Hand Drum Porter
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
 Portable Drum Truck
 Japanese Style Hand Drum Porter
 Hand Drum Porter
 Semi-Electric Hydraulic Stacker
 Manual Drum Mover
 Drum Transporter Handler
 Panel Roll Handling Trolley
 Drum Carrier Dispenser
 Wizard Drum Cradles
 Hand Drum Trolley
 Drum Dolly and Drum Caddy
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments
OTHER

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

Multifunctional drum truck with new design and outstanding performance
High lift, heavy-duty and external oil cylinder provide conventient and durable operation
Adjustable olecranon; suitable for 30~55 gallon steel or 210L plastic drums
More suitable for rough land surface with elastic wheel and easy movement

Specifications:
Model DTW400 DTW400A
Lifting Capacity kg 400 400
Drum Size Ø572x900mm (55gallon) steel, 210L Plastic
Lifting Height mm 350(500) 350(500)
Lfiting Per Stroke mm 22 22
Straddle leg inner width mm 650 850
Wheel size (Front Wheel) mm Ø250x55 Ø250x55
Wheel size (Rear Wheel) mm Ø150x50/Ø125x50 Ø150x50/Ø125x50
Outline Dimensions mm 790x810x1260 790x1010x1260
Net Weight (kg/lbs) 75 80
Previous:DT300 Portable Drum TruckNext:DTF350 Electric Drum TruckReturn
