Feature:

Product Name

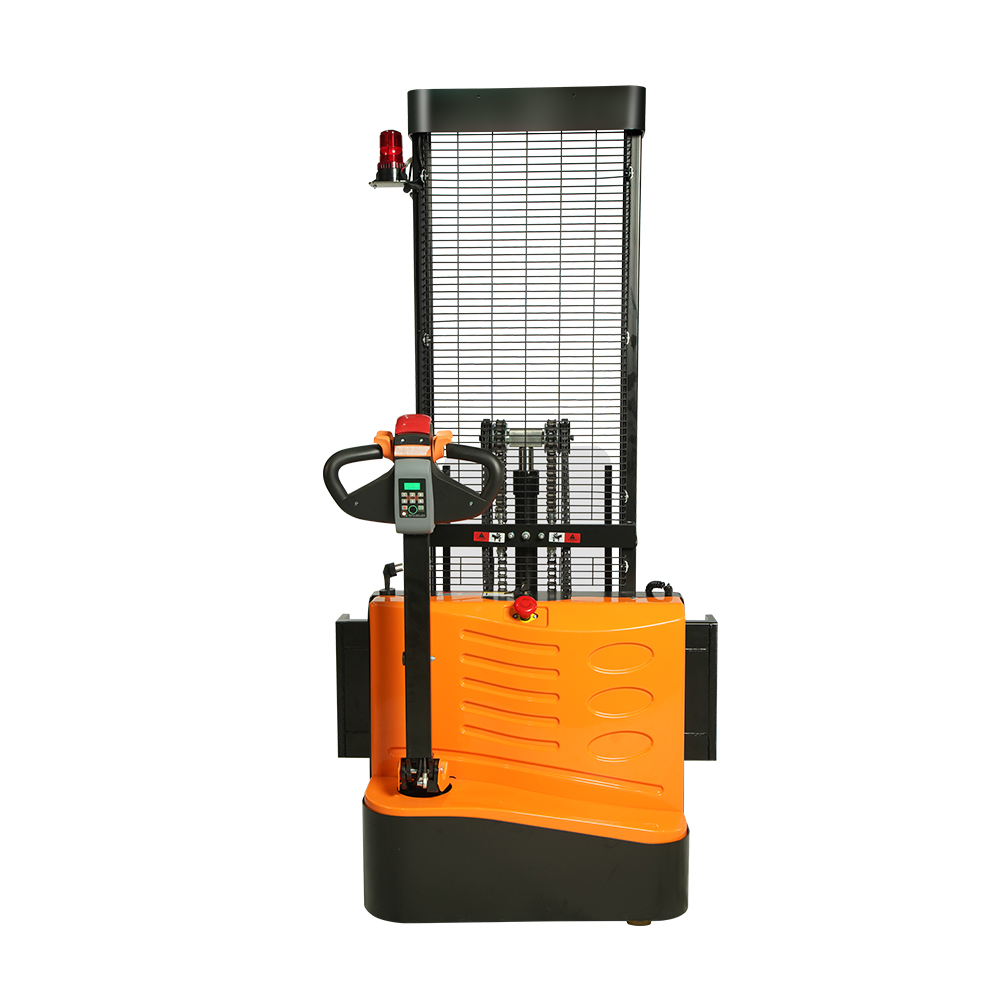

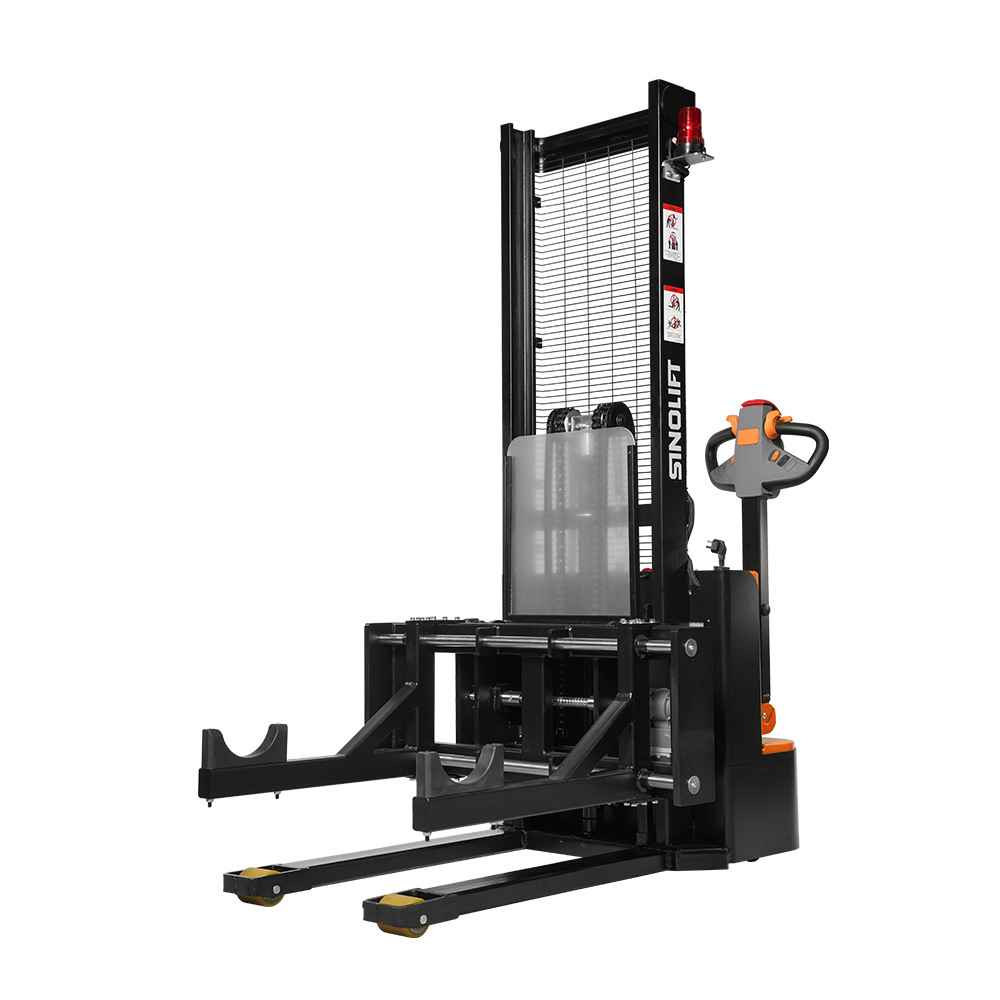

CDD10-LS700: Lithium Cell & Roll Handling Electric Stacker

The Sinolift CDD10-LS700 is a fully electric walkie reel stacker engineered for precision handling in the lithium battery and roll material industries. Capable of lifting up to 1.0 ton, it effortlessly transports electrode rolls, film, paper, and other cylindrical loads.

Key Features:

  1. Dual-Arm Design: Ensures secure and stable grip on delicate rolls, minimizing risk of damage.
  2. Lithium Power: Provides long runtime with fast charging for continuous multi-shift operation.
  3. Intelligent Safety System: Includes overload protection and stability control for accident-free handling.
  4. Ergonomic Operation: Designed for easy, one-person control to boost productivity and reduce fatigue.

Ideal for lithium cell production, packaging, and printing facilities seeking efficient and space-saving material handling solutions.

Specifications:
Model CDD10-LS700
Rated Load Capacity kg 1000
Load Center mm 600
Lifting Height mm 700 (customizable to higher specifications upon request)
Overall Width mm 1150
Power Type High-efficiency lithium battery system
Drive Motor V / Type 24V DC electric drive
