Feature:

Product Name

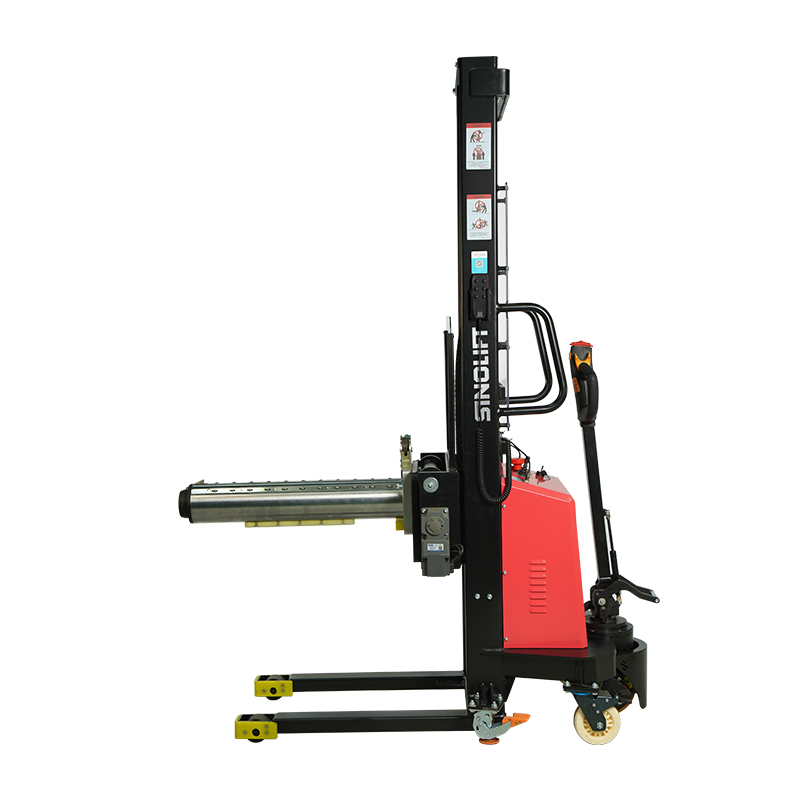

ND99S Walkie-Type Lithium Cell Reel Truck

The ND99S is a compact and reliable reel handling solution designed for the lithium battery, film, and paper industries.A smart choice for improving productivity and safety in demanding reel-handling environments.

  1. Versatile Performance: Supports both electric and semi-electric operation with a 1.0-ton load capacity.
  2. Efficient Handling: Intelligent push-pull system ensures fast, stable, and safe lifting of reels.
  3. User-Friendly Design: Built for one-person operation, ideal for narrow aisles and quick loading/unloading.
Specifications:
Model ND99S1 ND9952
Drive Type Hydraulic Hydraulic
Rated Load kg 1000 1000
Load Center mm 650 650
Minimum Height mm 650 650
Maximum Height mm 1960 1960
Overall Length mm 1496 1496
Overall Width mm 780 780
Overall Height mm 2200 2200
Cantilever Specification mm Ø295*720 Ø395*720
Front Wheel Specification mm Ø80-70 Ø80-70
Rear Wheel Specification mm Ø205X75 205X75
Lifting Motor kw DC24V/1.2 DC24V/1.2
Driving Motor kw DC24/0.75 DC24/0.75
Power Supply Specification V/Ah DC24/125AH DC24/125AH
Battery Type Lithium Iron Phosphate (LiFePO₄) Lithium Iron Phosphate (LiFePO₄)
Drive Control Type DC Speed Control DC Speed Control
Noise Level Db ≤70 ≤70
Steering Type Mechanical Steering Mechanical Steering
Braking Mode Electromagnetic Brake Electromagnetic Brake
Net Weight kg 730 740
Lifting Speed mm/s 103 103
Side Shift Mechanism Ball Screw Ball Screw
Side Shift Motor Kw DC24V/0.4 DC24V/0.4
