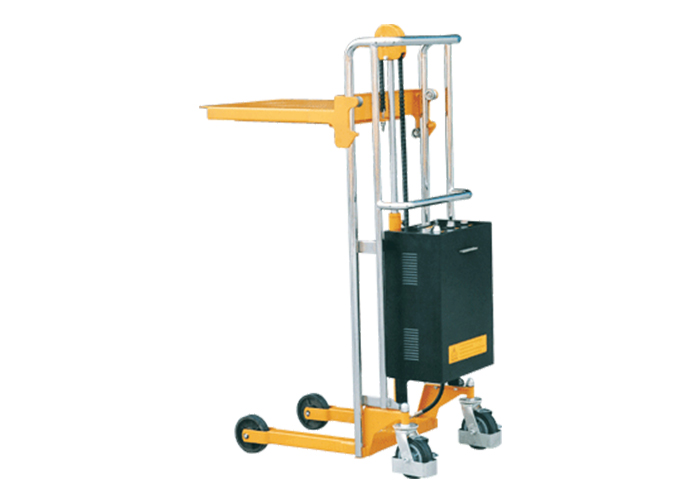

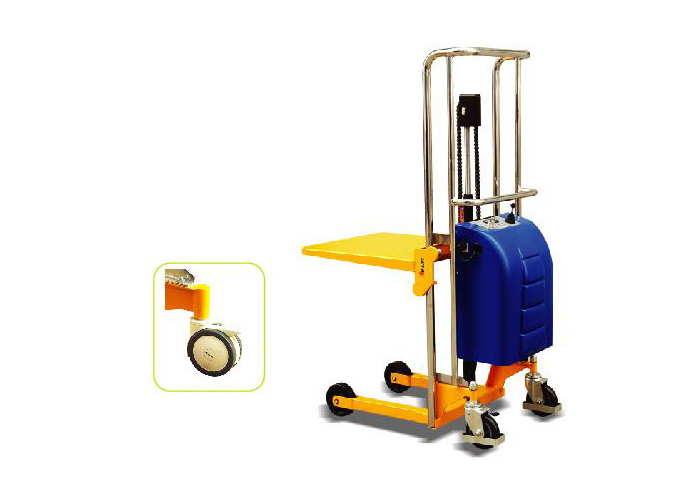

Name:EPS Semi-Electric Hydrualic Platform Stacker
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Forklift Mounted Drum Grab
Forklift or Crane Mounted Drum Handler
Mini Stacker
 01 Winch Mini Stacker
 02 Manual Hydraulic Mini stacker
 03 Semi-electric Mini Stacker
Work Positioner
Platform Hand Trolley
Access platform
Below-Hook or Hoist Drum Lifter
Drum and Cylinder Handling Trolley
Scissor Lift Platform
Stationary Lift Platform
Pallet Truck
Pallet Tilter
Hoisting And Lifting Equipment
Reel & Roll Handling Equipment
Mechanical Roll Pallet Truck
Drum Dumping Equipment

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

EPS Semi-Electric Hydrualic Platform Stacker with easier and faster lifting operation


▲ Easier and faster lifting operation.
▲ High quality hydraulic motor made in Italy.
▲ Service free battery.
▲Maintenance-free battery and clear operating display.
▲Built-in charge can be very convenient and safety.
▲ No-marking castor as standard.
▲ Conforms to EN1757:1 2001.

Specifications:
Model Platform EPS4120 EPS4150 EPS4180
Low Platform EPS4120L EPS4150L EPS4180L
Capacity (kg) 400 400 200~400
Max. Platform Height H (mm) 1315 1615 1915
1200 1500 1800
Min. Platform Height H1 (mm) 200 200 200
85(L) 85(L) 85(L)
Platform Length L1 (mm) 650 650 650
Paltform Width W (mm) 550 550 550
Front Load Wheel D (mm) Ø150 Ø150 Ø150
Ø75(L) Ø75(L) Ø75(L)
Rear Steering Wheel d (mm) Ø150 Ø150 Ø150
Ø125(L) Ø125(L) Ø125(L)
Lifting Speed (Laden/Unladen) mm/s 95/130 95/130 95/130
Lowering Speed (Laden/Unladen) mm/s 115/65 115/65 115/65
Power Unit V/kw 12/0.8 12/0.8 12/0.8
Battery V/Ah 12/60 12/60 12/60
Net Weight(PS/EP) (kg) 106 109 115
Noise-free Castor   O O O
Ovrall Size LxWxH (mm) 1040x570x1440 1040x570x1740 1040x570x1940
