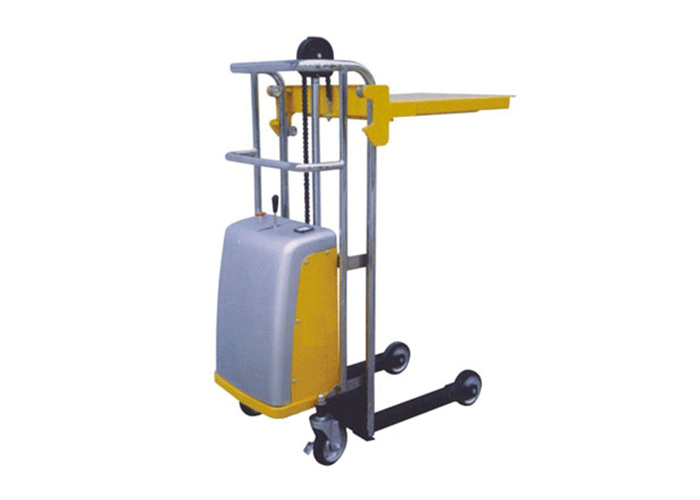

Name:EFP Semi-Electric Hydraulic Platform Stacker
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

EFP Semi-Electric Hydraulic Platform Stacker with two brakes


▲Conforms to CE Normals.
▲Two brakes increase safely.
▲Combination of stacker and lifting table.
▲Fully sealed & maintenance-free bettery.
▲Lifting operations becames easier and faster.
▲Conforms to EN1757-1 and EN1175-1.

Specifications:
Model   EFP0412 EFP0415
Capacity Q kg 400 400
Max. height h1 mm 1330 1630
Lifting height h3 mm 1000 1300
Min.platform height h13 mm 200 200
Max.platform height h3+h13 mm 1200 1500
Max.Width mm 590 590
Platform length mm 650 650
Platform width mm 550 550
Steering roller mm 150x40 150x40
Load roller mm 150x45 150x45
Lifting speed without load mm/sec 185 185
Lifting speed with load mm/sec 80 80
Lowering speed without load mm/sec 0~75 0~75
Lifting speed with load mm/sec 0~115 0~115
Battery   DC12V.60AH DC12V.60AH
Motor   DC12V,700W DC12V,700W
