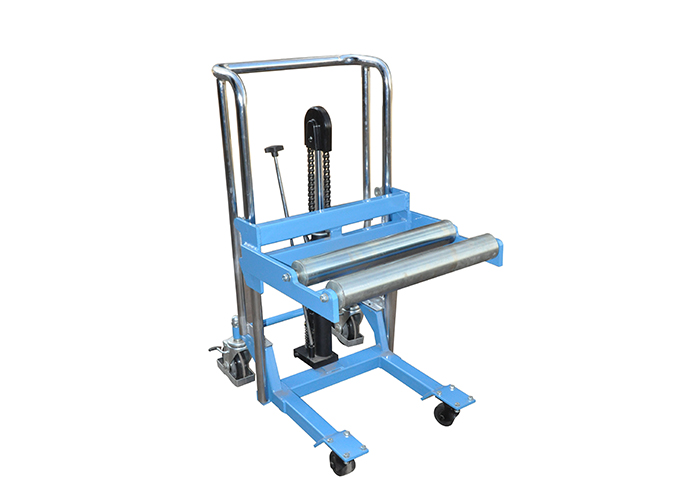

Name:PFG-X Roller Conveyor Handling Trolley
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

PFG-X Roller conveyor Handling Trolley with special design combines lifting, transporting and stacking cylindrical reels

Equipped with a overload protection valve.
Hard chromium plated frame.
▲Widely used with low platform and various accessories as option.
▲Design of double chain and big wheels can be stable and reliable.
▲Conforms to EN 1757-1.

Specifications:
Model PFG2085X PFG2120X PFG4085X PFG4120X PFG4150X
Capacity (kg) 200 200 400 400 400
Max. Roller Height (mm) 870 1200 870 1200 1500
Min. Roller Height (mm) 180/200 180/200 180/200 180/200 180/200
Outrigger Height (mm) 80 80 80 80 80
110(W) 110(W) 120(W) 120(W) 120(W)
Max. Diameter of reel (mm) Ø100~Ø300 Ø100~Ø300 Ø200~Ø600 Ø200~Ø600 Ø200~Ø600
Roller Size (mm) Ø76x500 Ø76x500 Ø76x550 Ø76x550 Ø76x550
Roller Length (mm) 500~800 500~800 550~800 550~800 550~800
Roller Center (mm) 120 120 180(240) 180(240) 180(240)
Roller Material Rubber (PU, Galvanized Steel, Stainless Steel)
Front Load Wheel (mm) Ø75 Ø75 Ø75 Ø75 Ø75
Ø75(W) Ø75(W) Ø75(W) Ø75(W) Ø75(W)
Rear Steering Wheel (mm) Ø125 Ø125 Ø150 Ø150 Ø150
Pump Strokes to Max. Height 14 21 30 45 58
Noise-free Castor O O O O O
Overall Size LxWxH (mm) 680x580x1030 680x580x1380 780x630x1070 780x630x1420 780x630x1720
Net Weight(PS/EP) (kg) 46 51 64 70 75
