Feature:

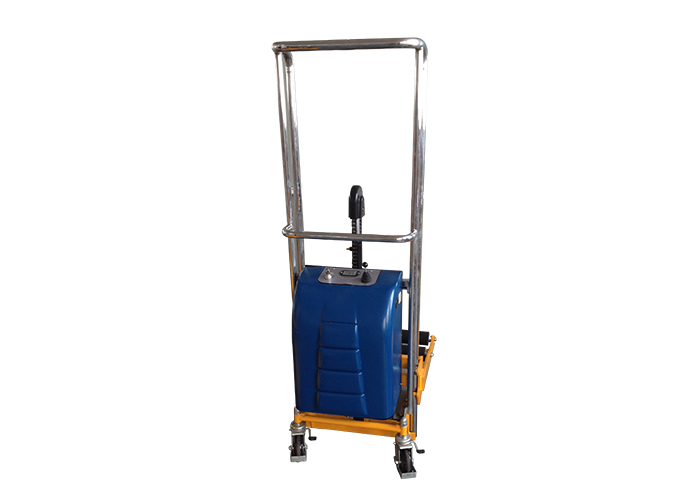

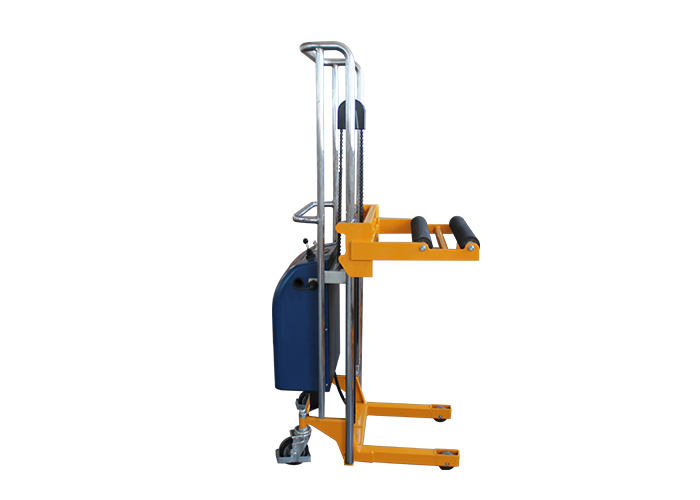

PFG-WE Electric Roller Conveyor Handling Trolley

Special design combines lifting, transporting and stacking cylindrical reels.
Equipped with a overload protection valve.
Hard chromium plated frame.
▲Widely used with low platform and various accessories as option.
▲Design of double chain and big wheels can be stable and reliable.
▲Conforms to EN 1757-1.

Specifications:
Model Fixed front Wheel PFG4085E PFG4120E PFG4150E
Universal Front Wheel PFG4085WE PFG4120WE PFG4150WE
Capacity (kg) 400 400 400
Max. Roller Height (mm) 870 1200 1500
Min. Roller Height (mm) 180/200 180/200 180/200
Outrigger Height (mm) 80 80 80
120(WE) 120(WE) 120(WE)
Max. Diameter of fit reel (mm) Ø200~Ø600 Ø200~Ø600 Ø200~Ø600
Roller Size (mm) Ø76x550 Ø76x550 Ø76x550
Roller Length (mm) 550~800 550~800 550~800
Roller Center (mm) 180(240) 180(240) 180(240)
Roller Material Rubber (PU, Galvanized Steel and Stainless Steel)
Front Load Wheel (mm) Ø75 Ø75 Ø75
Ø75(WE) Ø75(WE) Ø75(WE)
Rear Steering Wheel (mm) Ø125 Ø125 Ø125
Power Unit V/W 12/800 12/800 12/800
Battery V/Ah 12/60 12/60 12/60
Overall Size LxWxH (mm) 780x630x1070 780x630x1420 780x630x1720
Net Weight(PS/EP) (kg) 110 115 120
