Products – Roll Handling Trolley

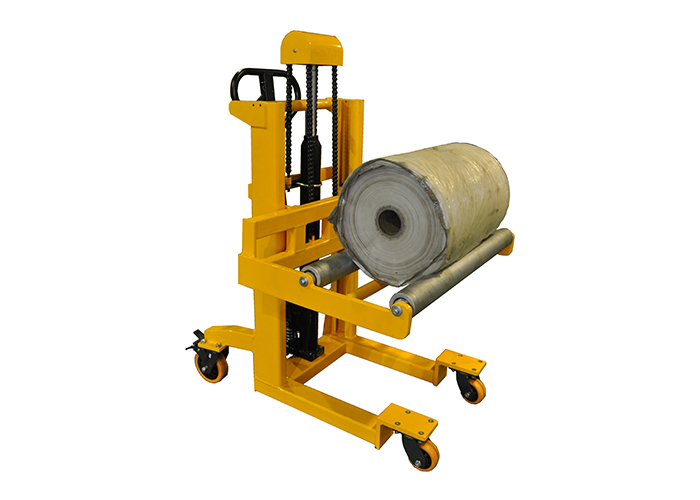

Name:PFZ-G Roll Conveyor Handling Trolley
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

PFZ-G Roll Conveyor Handling Trolley with c-shape portal frame



C-shape portal frame, small size and dedicated design can be perfect for use in narrow space.

High quality oil cylinder with long service life, high occupancy and reliable operation.

Widely used in printing, packaging, plastic, pharmaceuticals and other particular industry with      ultralow, 4 universal wheels and various optional accessories.

Specifications:



Model   PFZ6150G PFZ8150G
Max.Capacity kg 600 600
Operation mode   Manul
Load Centre mm 300
Max.Fork Height mm 1200(1500)
Min.Fork Height mm 90(universal front wheel)
Fork Size(L×W) mm 700×120
Front Wheel Diameter mm Φ80 Φ80
Rear Wheel Diameter mm Φ150 Φ150
Overall Size(L×W×H) mm 980×600×1500 980×620×1580
Net Weight kg 115 128
