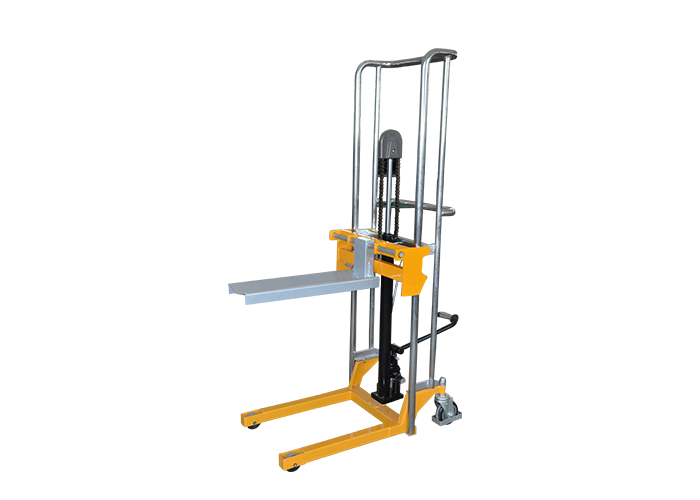

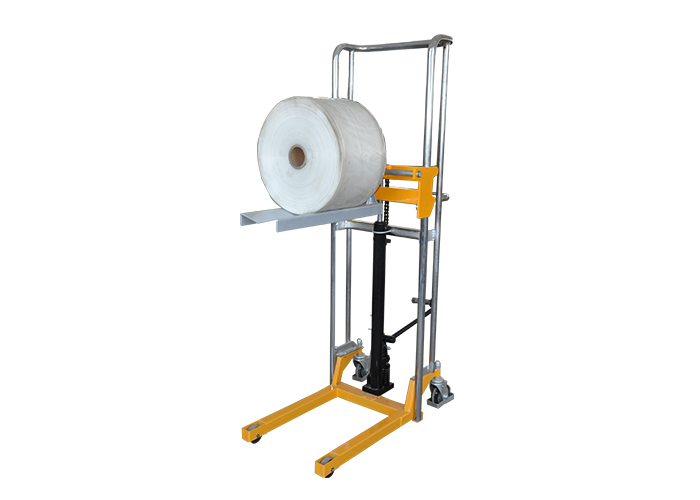

Name：PJ-V V-Shape Plate Handling Trolley
Click to view larger
Diagrams：

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments

 Business Line: 4007-166-180
 Tel：+86 21 58003681
              +86 21 68014500
 Fax：+86 21 68014262
 Website：http://www.sinoliftdrum.com
 Email：drum@sinolift.com
 Skype：sinolift

Feature：

PJV V-Shape Plate Handling Trolley which is suitable for printing work, flexible package industry


▲Robust construction.
▲Hard chromium plated frame.
▲Effortless Movement.
▲Polyurethane rollers with bearing.
▲No-marking castor as standard.
▲Widely used with low leg and various accessories as option.
▲The V-Shaped plate is suitable for printing work, flexible package industry.
▲Conforms to EN 1757-1.

Specifications：
Model (Adjustable Fork)   PJ2085V PJ2120V PJ4085V PJ4120V PJ4150V PJ4180V
Capacity (kg) 200 400
Max.Fork Height (mm) 850 1200 850 1200 1500 1800
Min.Fork Height (mm) 85 85
Fork Size LxW (mm) 600x100 650x100
Adjustable Fork Width PJ (mm) 215-500 235-500
Load Roller (mm) Ф75 Ф75
Steering Wheel (mm) Ф125 Ф125
Pump strokes to Max.Height   19 26 35 50 63 76
Battery (Ah/V) Dec-60 Dec-70
Overall Height (mm) 1080 1435 1060 1410 1710 1710
Overall Width (mm) 560 590
Overall Length PF/PJ(mm) 1020 1100
Net Weight PJ (kg) 58 65 75 81 85 85
Option Platform   LP10 LP20
