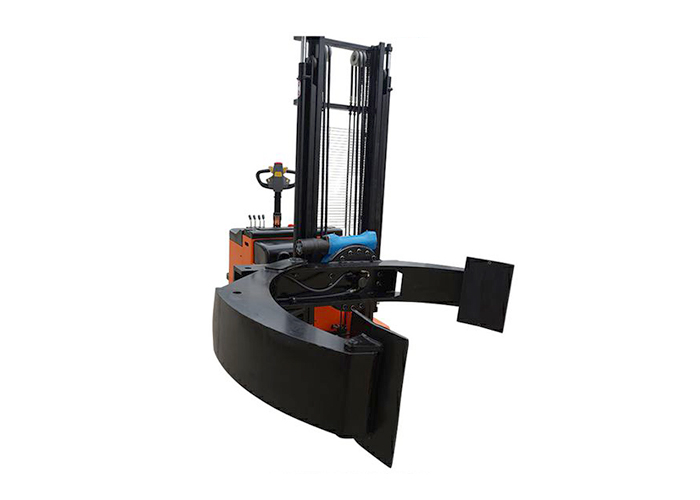

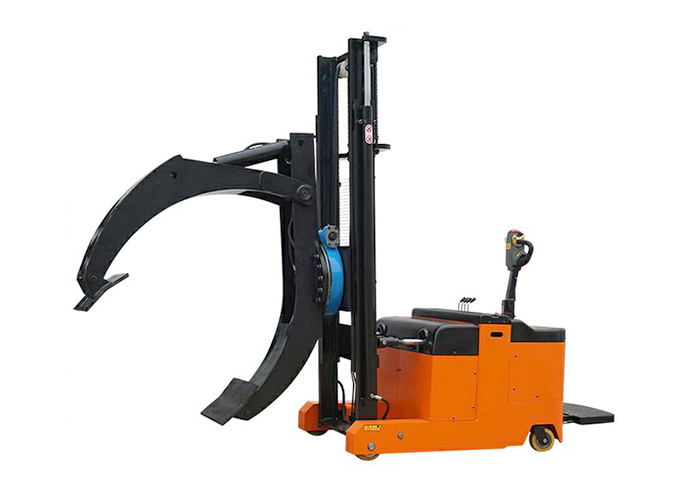

Name：CPD-Z series Full Electric Counter-balanced Clamp Stacker
Click to view larger
Diagrams：

Products List
Portable Drum Handling Equipment
Forklift Mounted Drum Grab
Forklift or Crane Mounted Drum Handler
Mini Stacker
Work Positioner
Platform Hand Trolley
Access platform
Below-Hook or Hoist Drum Lifter
Drum and Cylinder Handling Trolley
Pallet Tilter
Hoisting And Lifting Equipment
Reel And Roll Handling Equipment
 01 Roll and Reel Pallet Truck
 02 Roll And Reel Hydraulic Stacker
 03 Spercial Roll And Reel Lifter
 04 Roll And Reel Work Positioner
 05 Roll And Reel Flip Clamp Stacker
Mechanical Roll Pallet Truck
Drum Dumping Equipment
Mate Series Lift Trucks
Forklift Attachments

 Business Line: 4007-166-180
 Tel：+86 21 58003681
              +86 21 68014500
 Fax：+86 21 68014262
 Website：http://www.sinoliftdrum.com
 Email：drum@sinolift.com
 Skype：sinolift

Feature：

CPD-Z Transverse Clamp Gripper Handling Trolley with unique clamp design

▲The mast of the Counter Balance Paper Roll Stacker have forward and back functions.
▲Use imported USA Curtis controller,infinitely variable speed drive to protect the operator safety.
▲Electric Lifting, Automatic Clamping, Electric Rotating ≥90 degree.
▲With unique clamp design, can clamp the rolls from the pallets or cars.
▲Widely used in paper, packaging, printing and textiles industries.

▲Handling rolls, carpet, cloth, cable, wood, steel and rolls tires etc.

Specifications：
Model CPD0516Z-500 CPD0525Z-500 CPD0516Z-1000 CPD0525Z-1000 CPD1025Z-1500
Capacity kg 500 500 500 500 1000
Lift max.height mm 1600 2500 1600 2500 2500
Min.clamp height 520 520 520 520 520
Clamp width mm 635-950 635-950 1135-1450 1135-1450 1535-1850
Clamp length mm 820 820 1220 1220 1620
Paper roll diameter mm Φ200-500 Φ200-500 Φ600-1000 Φ600-1000 Φ800-1500
Load center mm 350 350 700 700 800
α/β 3°/5° 3°/5° 3°/5° 3°/5° 3°/5°
Battery V/Ah 24/165 24/165 24/210 24/210 24/210
Charger V/A 24/20 24/20 24/30 24/30 24/30
Lifting motor Kw 2.5 2.5 2.5 2.5 2.5
Driving motor Kw AC1.5 AC1.5 AC1.5 AC1.5 AC1.5
Weight kg 1048 1250 1460 1640 1860
Over size L*W*H mm 2500*950*2000 2500*950*1785 2900*1500*2000 2900*1500*1785 3300*1900*1785
Channel request mm 2900Turn 2900Turn 3600Turn 3600Turn 4000Turn
Forward and Back request mm 1000 1000 1600 1600 1900
Driving wheel mm 1*Φ250*80
Training wheels mm 2*Φ150*50
Front wheels mm 2*Φ178*80
Climbing slope % 4/6
Travel speed Km/h 4/6
Lifting speed mm/s 45/50
Falling speed mm/s 50/45
Braking type Electromagenetic braking
