Products – Mechanical Roll Pallet Truck

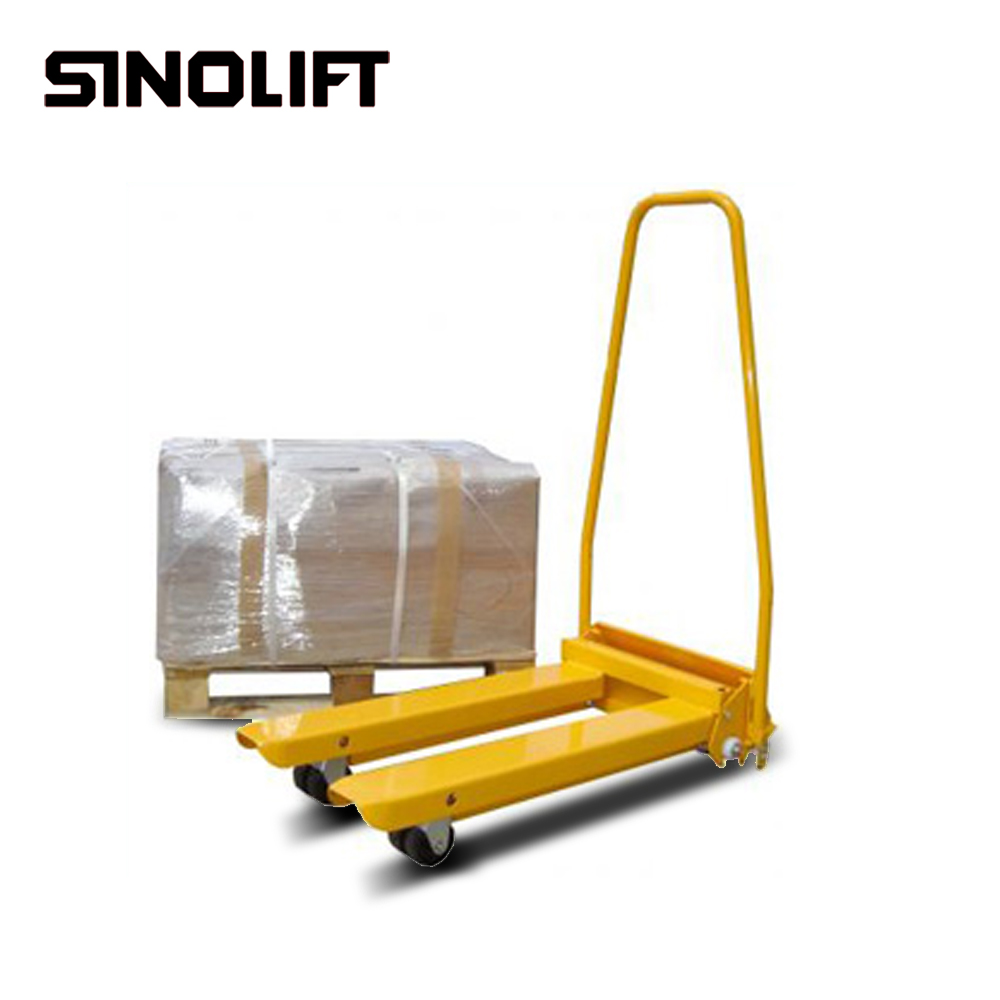

Name：MX Mechanic Lifter
Click to view larger
Diagrams：

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments
OTHER

 Business Line: 4007-166-180
 Tel：+86 21 58003681
              +86 21 68014500
 Fax：+86 21 68014262
 Website：http://www.sinoliftdrum.com
 Email：drum@sinolift.com
 Skype：sinolift

Feature：
- To replace hydraulic pallet truck when under 300kg load.
Pallets are simply lifted by pulling the handle backwards (the leverage principle).

Saves a lot of time as no pumping is required.
- Extremely low weight, about 25kg.

Thanks to the low weight, the mechanic lifter can easily be carried to other floors, put into a truck or a car.

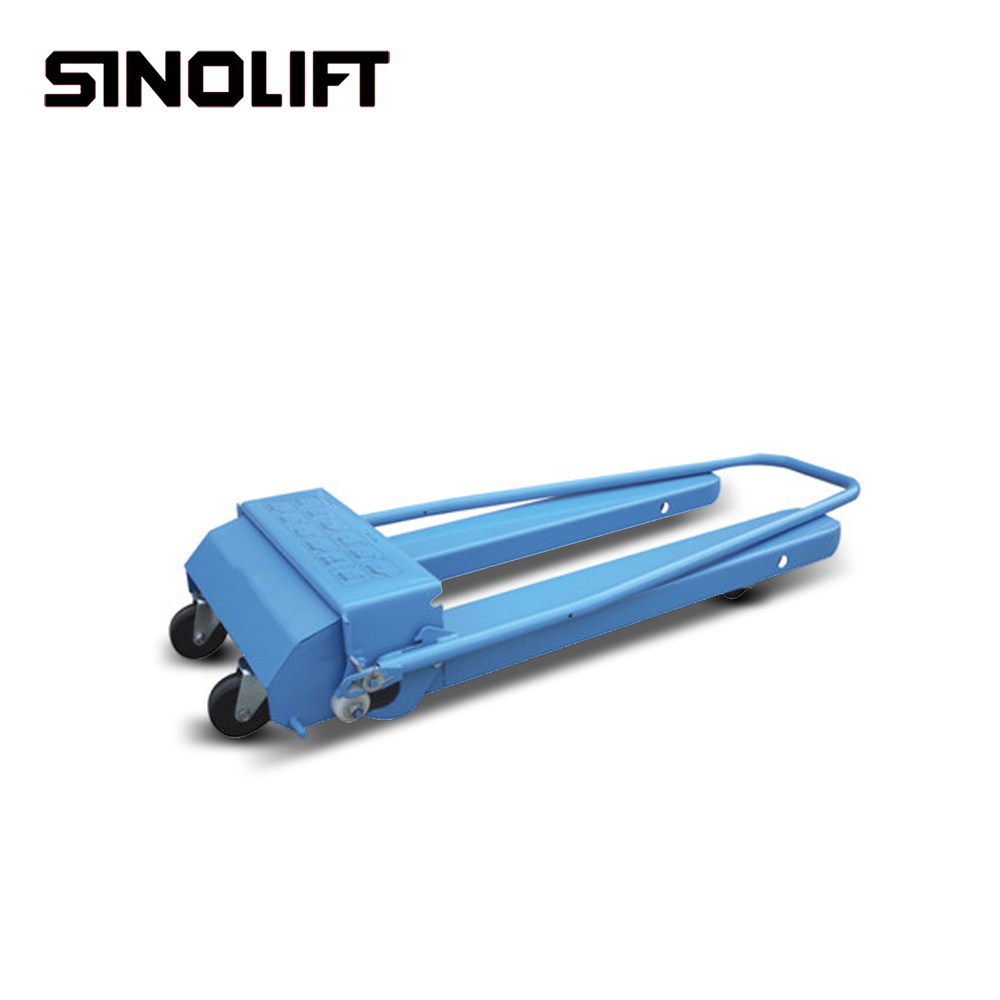

- Foldable.when not in use, it can be hung up on a hook on the wall.

- No hydraulic pump to repair, no oil can leak out no seals to replace.

- Ideal for grocery stores, all kind of small stores, pharmaceutical industry, drugstores, offices, schools, hospitals etc.
Specifications：
Model MX0608 MX0610
Capacity (kg) 300 300
Lift Height (mm) 145 145
Lowered Height (mm) 85 85
Fork Length (mm) 800 1100
Width of Single Fork (mm) 120 120
Total Height (mm) 200/1160 200/1160
Steer Wheel Dia.xWid (mm) Ø80x40 Ø80x40
Load Wheel Dia.xWid (mm) Ø80x40 Ø80x40
Overall Size LxW (mm) 1030x420 1330x420
Net Weight (kg) 25 30
