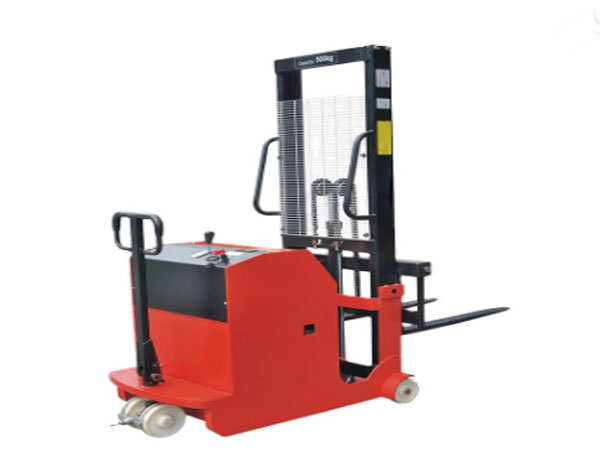

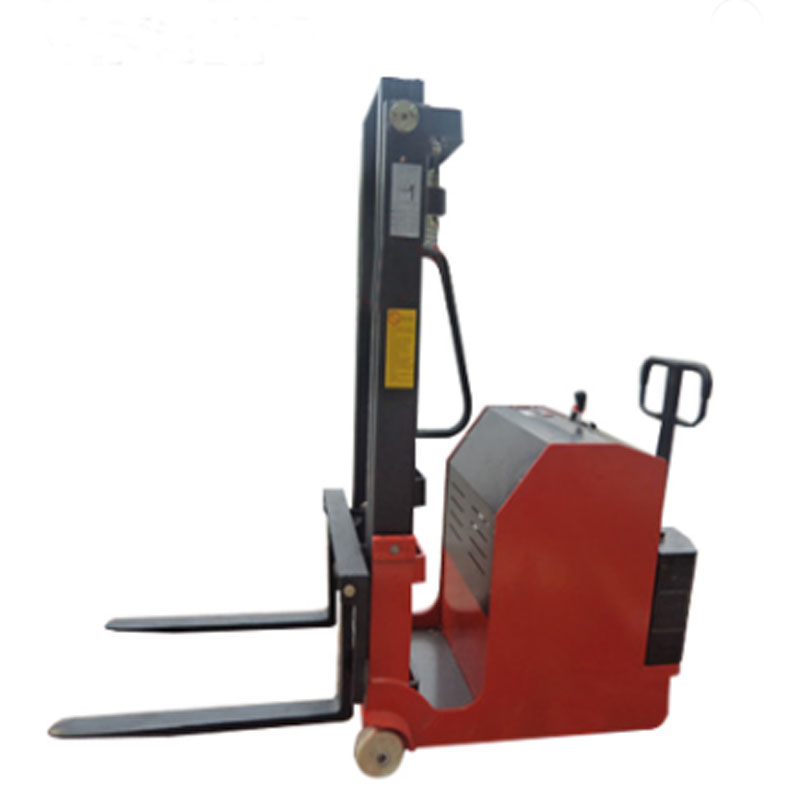

Name:SINOLIFT SPN-B series electric stacker with good quality
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Forklift Mounted Drum Grab
Forklift or Crane Mounted Drum Handler
Mini Stacker
Work Positioner
Platform Hand Trolley
Access platform
Below-Hook or Hoist Drum Lifter
Drum and Cylinder Handling Trolley
Pallet Tilter
Hoisting And Lifting Equipment
Reel And Roll Handling Equipment
Mechanical Roll Pallet Truck
Drum Dumping Equipment
Mate Series Lift Trucks
Forklift Attachments

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

1.High efficient and control system.
2.Station driving pedal adopts shock absorption design;
3.Simple integrated control handle,all operation functions can be easily completed manually;
4.Frame is a high strength steel frame structure with 5 fulcrums and low center of gravity;
5.Whole system adopts imported waterproof connectors;
6.Three braking functions: release brake, reverse brake and emergency brake to ensure the safety of driving;
7.Station-driven standard vehicle speed automatically reduces with the increase of steering angle;

Specifications:
Model SPN1016-B SPN1020-B SPN1025-B
Rated Capacity kg 1000
Min fork height mm 75
Max fork height mm 1600 2000 2500
min mast height mm 2050 1550 1800
Fork length mm 800
The total fork width mm 2100-800
Body size(length x width) mm 2100 x 820
Min turning radius mm 1200
Lifting motor power kw 1.6
Battery V/Ah 12/100
Net weight kg 900 1000 1080
