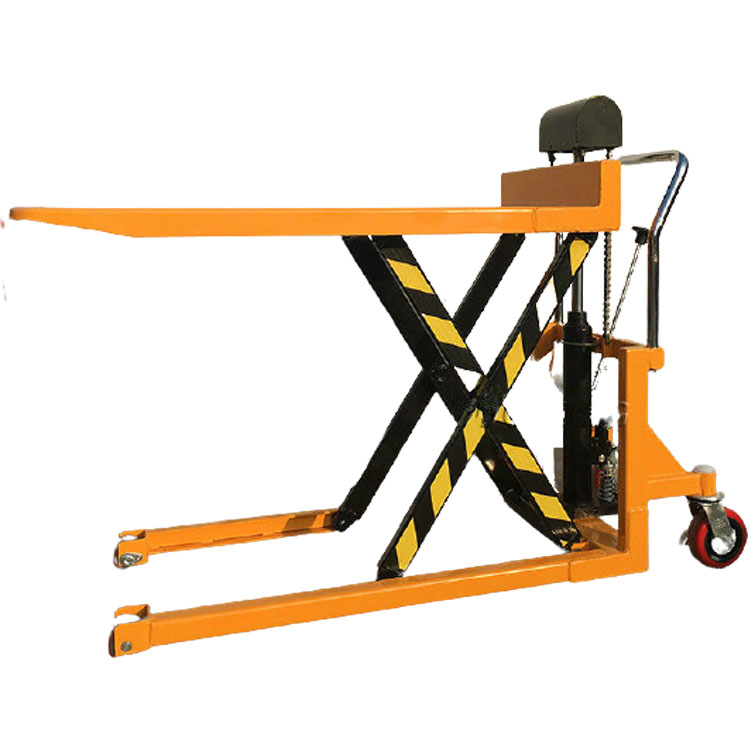

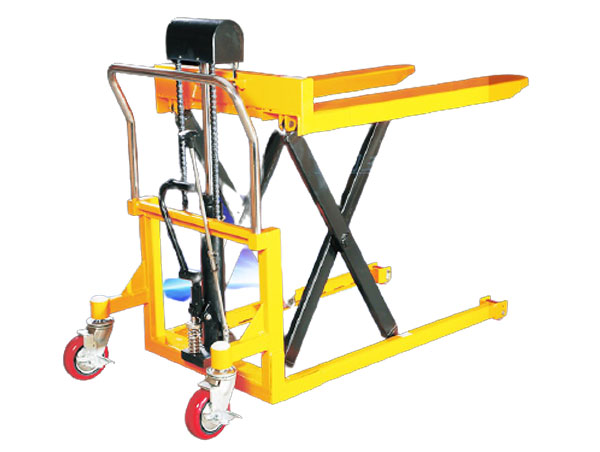

Name：GSD1000 Hand Scissor Skid Lifter High lift Scissor Hydraulic Hand Pallet Truck
Click to view larger
Diagrams：

Products List
Portable Drum Handling Equipment
Forklift Mounted Drum Grab
Forklift or Crane Mounted Drum Handler
Mini Stacker
Work Positioner
Platform Hand Trolley
Access platform
Below-Hook or Hoist Drum Lifter
Drum and Cylinder Handling Trolley
Pallet Tilter
Hoisting And Lifting Equipment
Reel And Roll Handling Equipment
Mechanical Roll Pallet Truck
Drum Dumping Equipment
Mate Series Lift Trucks
Forklift Attachments

 Business Line: 4007-166-180
 Tel：+86 21 58003681
              +86 21 68014500
 Fax：+86 21 68014262
 Website：http://www.sinoliftdrum.com
 Email：drum@sinolift.com
 Skype：sinolift

Feature：
1.High-performance hydraulic pump features quality seals.
2.Welded steel frame with powder coated finish.
3.Lowering speed can be finely metered for sensitive lowering of the load.
4.Safety supports guarantee sure standing when the forks are raised.
5.One-stage hydraulic for increased robustness.
6.Low noise and smooth running with standard tyres: steer- and load rollers are polyurethane.
7.Easy-to-operate 3-position pump handle features Up, Down and Neutral positions.
Specifications：
Model GSD1000
Loading Capacity kg 1000
Min. Lifting height mm 80
Max. Lifting height mm 890
Fork Length mm 1100
Fork Width mm 680
Pallet Truck Length mm 1720
Handle height mm 1030
Wheel type PU
Net Weight kg 90
