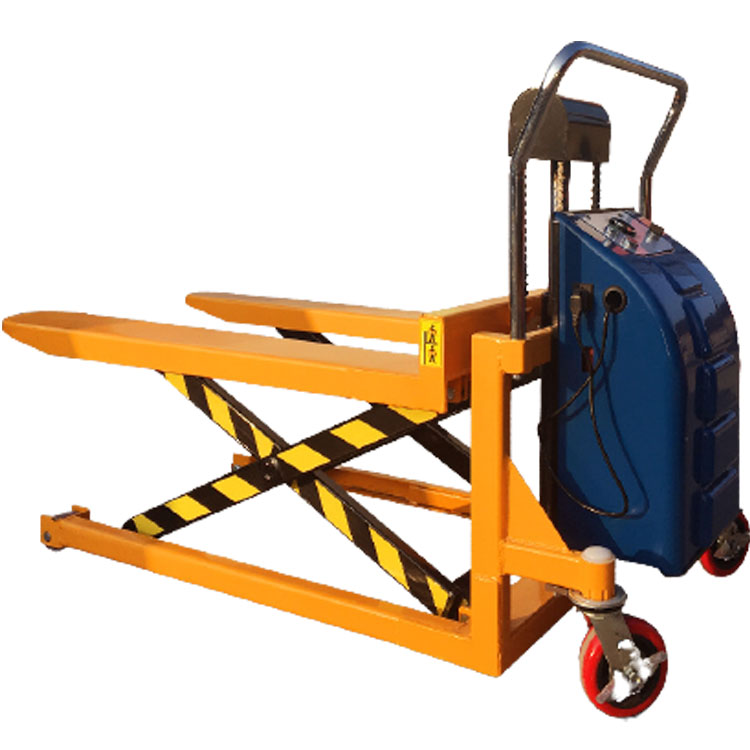

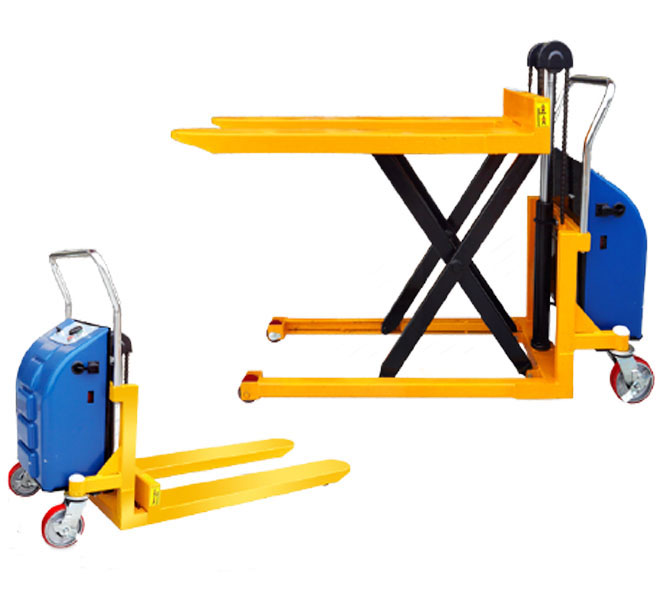

Name:EGSD1000 Electric Scissor Skid Lifter Electric Scissor Lift Pallet Truck
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

1.It can still move while lifting.

2.Easy to operate, minimum rear tension.

3.Ideal tool for loading and unloading.

4.Heavy continuous welded steel frame for easy handling of heavy goods.

5.The operating lever is simple.With two fixed brakes at the rear wheel, the safety is increased.

6.Reliable pumping station ensures stable and fast handling of heavy objects.

7.The steering handle ensures more comfortable and simple operation.

8.Organic combination of pallet carrier and lifting platform.

Specifications:
Model EGSD1000
Loading Capacity kg 1000
Min. Lifting height mm 85
Max. Lifting height mm 850
Fork Length mm 1100
Fork Width mm 680
Overall Length mm 1720
Handle height mm 1030
Wheel type PU
Net Weight kg 135
