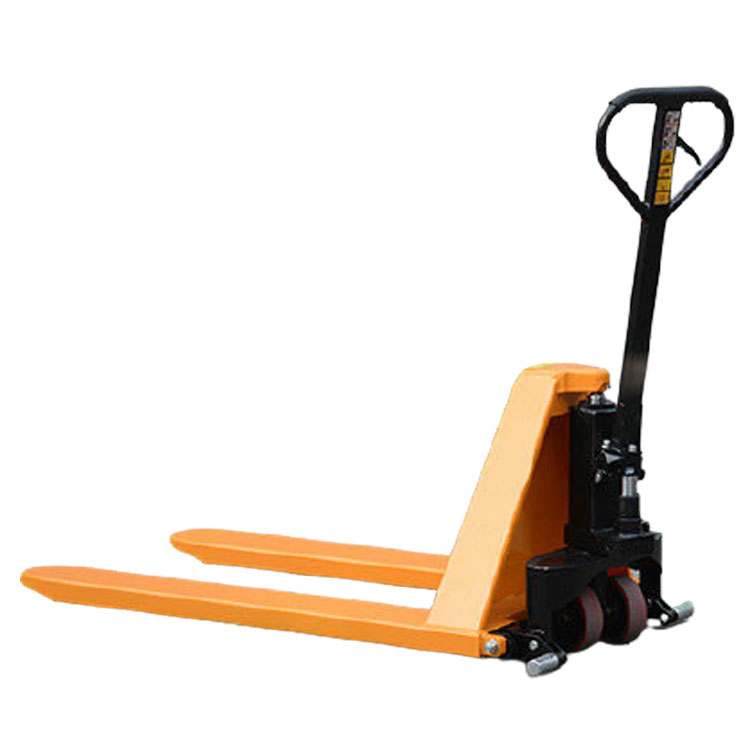

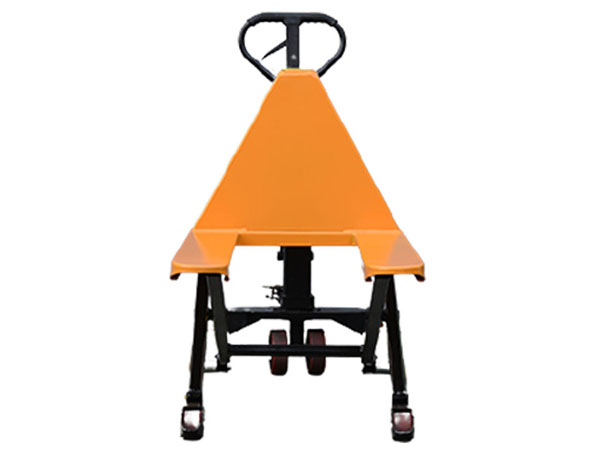

Name：GSF1000 GSF1500 Hand Scissors Pallet Truck Scissor Lift Pallet Truck
Click to view larger
Diagrams：

Products List
Portable Drum Handling Equipment
Forklift Mounted Drum Grab
Forklift or Crane Mounted Drum Handler
Mini Stacker
Work Positioner
Platform Hand Trolley
Access platform
Below-Hook or Hoist Drum Lifter
Drum and Cylinder Handling Trolley
Pallet Tilter
Hoisting And Lifting Equipment
Reel And Roll Handling Equipment
Mechanical Roll Pallet Truck
Drum Dumping Equipment
Mate Series Lift Trucks
Forklift Attachments

 Business Line: 4007-166-180
 Tel：+86 21 58003681
              +86 21 68014500
 Fax：+86 21 68014262
 Website：http://www.sinoliftdrum.com
 Email：drum@sinolift.com
 Skype：sinolift

Feature：
1.High-performance hydraulic pump features quality seals.
2.Welded steel frame with powder coated finish.
3.Lowering speed can be finely metered for sensitive lowering of the load.
4.Safety supports guarantee sure standing when the forks are raised.
5.One-stage hydraulic for increased robustness.
6.Low noise and smooth running with standard tyres: steer- and load rollers are polyurethane.
7.Easy-to-operate 3-position pump handle features Up, Down and Neutral positions.
Specifications：
Model GSF1000 GSF1500
Loading Capacity kg 1000 1500
Min. Lifting height mm 85 85
Max. Lifting height mm 800 800
Steering wheel mm 180X50 180X50
Fork wheel mm 80X70 80X70
Fork Length mm 1150 1150
Fork width mm 520/550/685 520/550/685
Overall Length mm 1580 1580
Net Weight kg 135 135
