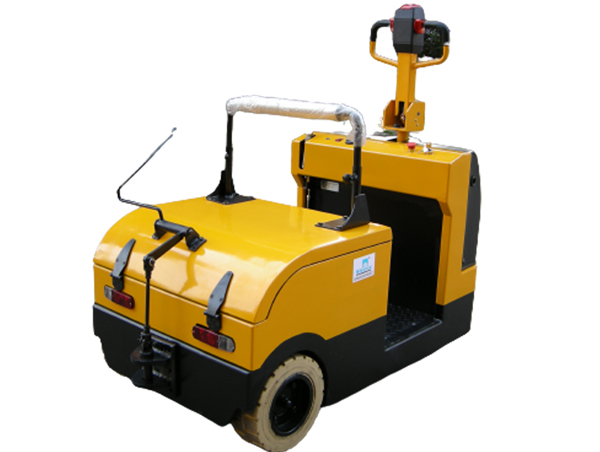

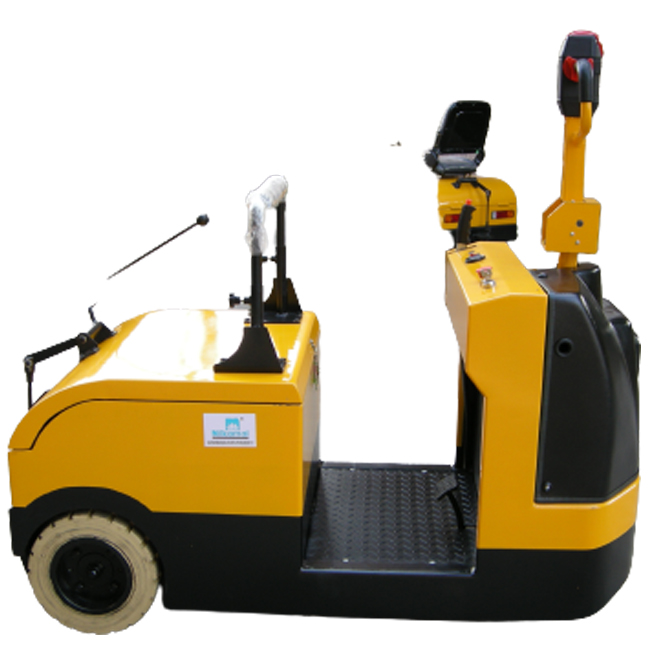

Name:QD30BS Stand-on Electric Towing Tractor Tug Tractor Capacity 3ton
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Forklift Mounted Drum Grab
Forklift or Crane Mounted Drum Handler
Mini Stacker
Work Positioner
Platform Hand Trolley
Access platform
Below-Hook or Hoist Drum Lifter
Drum and Cylinder Handling Trolley
Pallet Tilter
Hoisting And Lifting Equipment
Reel And Roll Handling Equipment
Mechanical Roll Pallet Truck
Drum Dumping Equipment
Mate Series Lift Trucks
Forklift Attachments

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

1.With traction capacity of 2000kgs to 3000kgs, the tractor truck is mainly used to transport large amounts of goods in a workshop
or among workshops.

2.This QD30BS stand-on tractor uses the same battery 24-volt as seated tractors, as a result, you can upgrade your fleet of tractors at a minimal cost.
3.Safe automotive controls and steering wheel eliminate hand injuries and carpal tunnel syndrome hazards associated with twist grip controls.

Specifications:
Model No. QD-30BS
Towing Capacity kg 3000
Driving Motor W DC-24V-2000W
Battery D-300A 24V
Driving Speed km/h 7
Controller Type MOSFET
Working Time Hours 6
Min. Turning Radius mm 1380
Operation Type Stand-on
Min.under-clearance mm 85
Steering Wheel mm White Rubber Φ267x127
Drive Wheel mm Φ330x165
Overall length mm 1490
Overall width mm 820
Overall height mm 1350
Service Weight kg 1450
