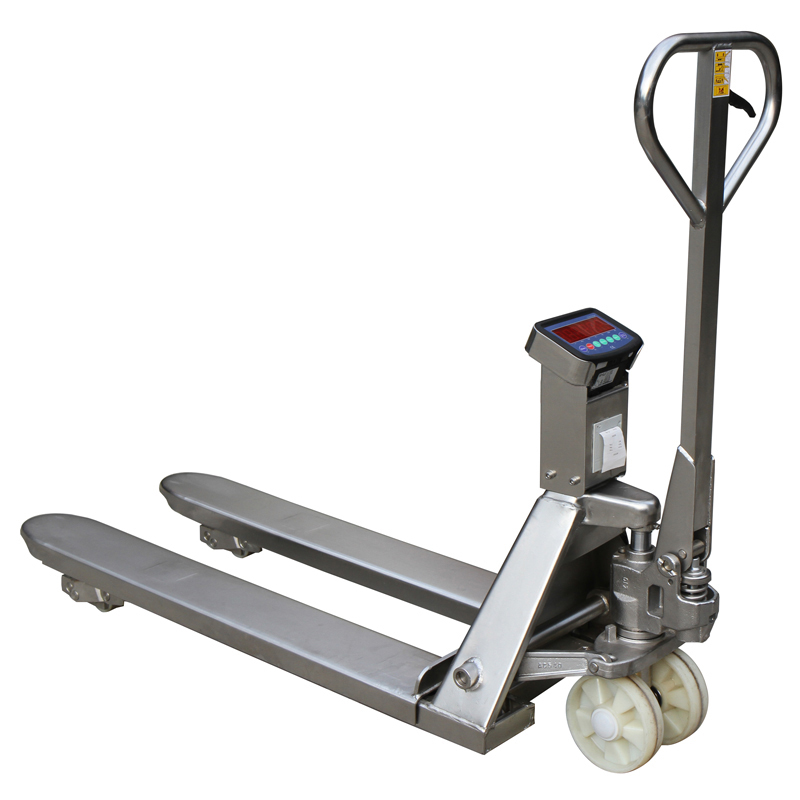

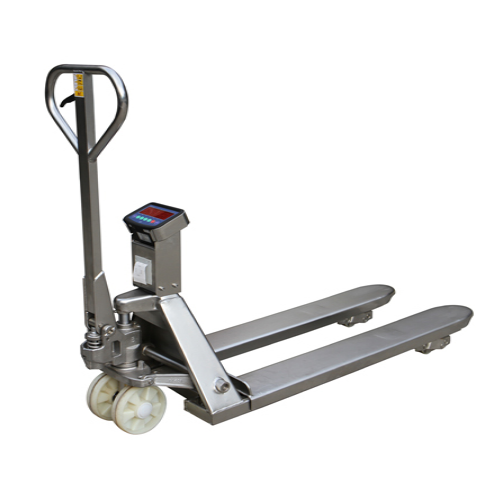

Name:HLS Stainless Steel Pallet Truck
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
 Hand Pallet Truck
 High Lift Scissors Pallet Truck
 Mechanical Pallet Truck
 Lithium Battery Operated Pallet Truck
 Acid Battery Operated Pallet Truck
Mate Series Lift Trucks
Forklift Attachments
OTHER

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:
1. Bright 1.2" LED display
2. Accumulate up to 2000 records
3. PHS made with SUS304 S.S.
4. Four high-quality IP67 shear beam load cell
5. 540mm or 680mm for different market
6. Optional 2,000kg or 2,500kg
7. Optional thermal printer
Specifications:

Model







HL20S (metric)

HL20S (imperical)

HL25S (metric)

HL25S (imperical)

Material







Stainless steel

Stainless steel

AC stainless

AC stainless

Capacity

Q

kg

lbs

2000

4400

2500

5500

Fork height

h13-h14

mm

in

80-205

3.1-8

80-205

3.1-8

Steering wheel

Øxw

mm

in

φ180x50

7x2

φ180x50

7x2

Single load roller

Øxw

mm

in

φ74x93

2.9x3.6

φ74x93

2.9x3.6

Tandem load roller

Øxw

mm

in

φ74x70

2.9x2.75

φ74x70

2.9x2.75

Size of fork

sxe

mm

in

160x60

6.3x2.36

160x60

6.3x2.36

Width over forks

b1

mm

in

550/680

21.6/27

550/680

21.6/27

Fork length

l

mm

in

1150/1220

45/48

1150/1220

45/48

Battery







DC 6v/4.5ah

DC 6v/4.5ah

DC 6v/4.5ah

DC 6v/4.5ah

Charger







100V-240V

100V-240V

100V-240V

100V-240V

N.W



kg

lbs

106/108

233/238

122/124

268/273
