Products – Reel And Roll Handling Equipment

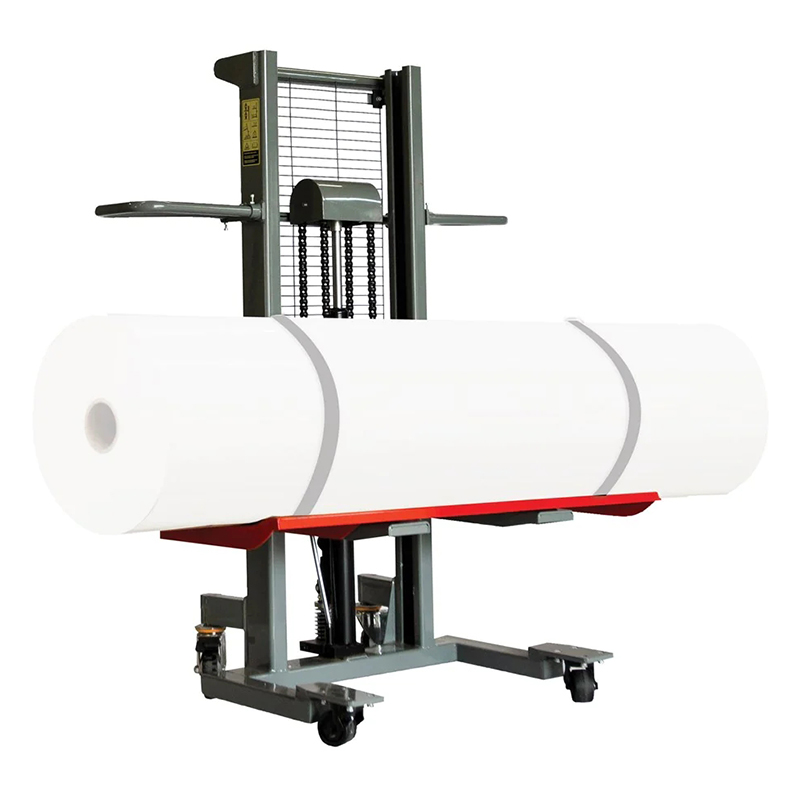

Name：EFR3050L Roll & Reel Hydraulic Stacker
Click to view larger
Diagrams：

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments
OTHER

 Business Line: 4007-166-180
 Tel：+86 21 58003681
              +86 21 68014500
 Fax：+86 21 68014262
 Website：http://www.sinoliftdrum.com
 Email：drum@sinolift.com
 Skype：sinolift

Feature：

This versatile lifter fits laminators and many other printers requiring 54" lift height.

·The power DC motor enables users to effortlessly lift rolls as heavy as 660 lbs. (300kg)) and as wide as 13 feet (400 cm.)

·The flat roll loading tray fits most laminators and easily reaches the upper loading shaft height. Two adjustable roll

wedges position rolls on the tray and can be easily removed for loading and unloading.

Specifications：
SPECIFICATIONS 61565
Roll Weight Capacity 660 lbs (300 kg)
Lift Height 54" H (135 cm)
Max. Roll Width 13" (400 cm)
Max. Roll Diameter 15.75" (40 cm)
Overall Media Lifter Dimensions (W x D x H) 47.25"W x 35.5"D x 68"H
(120 x 90.3 x 173 cm)
Media Lifter Weight 271 lbs (123 kg)
Bottom Fork Clearance 3.25" (8.25 cm)
Front Swivel Castors 2" (5 cm)
Rear Swivel Castors 5" (12.7 cm)
Electric 12V/60AH DC motor USA
(220V/50HZ DC motor Europe)
Battery Maintenance free lead acid battery
Charger Built-In 110V AC charger USA
(Built-In 220V AC charge Europe)
Previous：MCR6150 MRC6180 Roll & Reel Hydraulic StackerNext：SINOLIFT PFR3050L PFR4025 PFR4050 Roll & Reel Hydraulic StackerReturn
