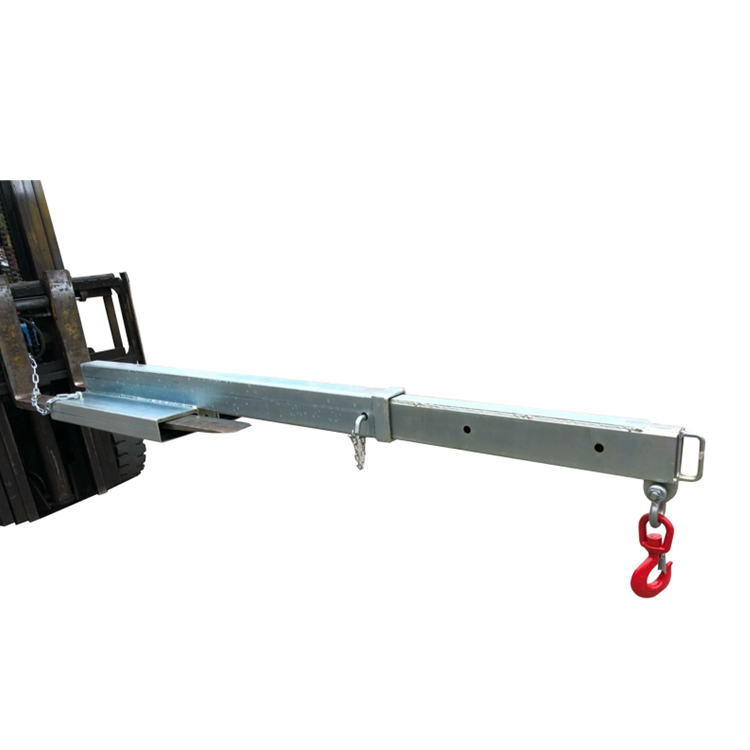

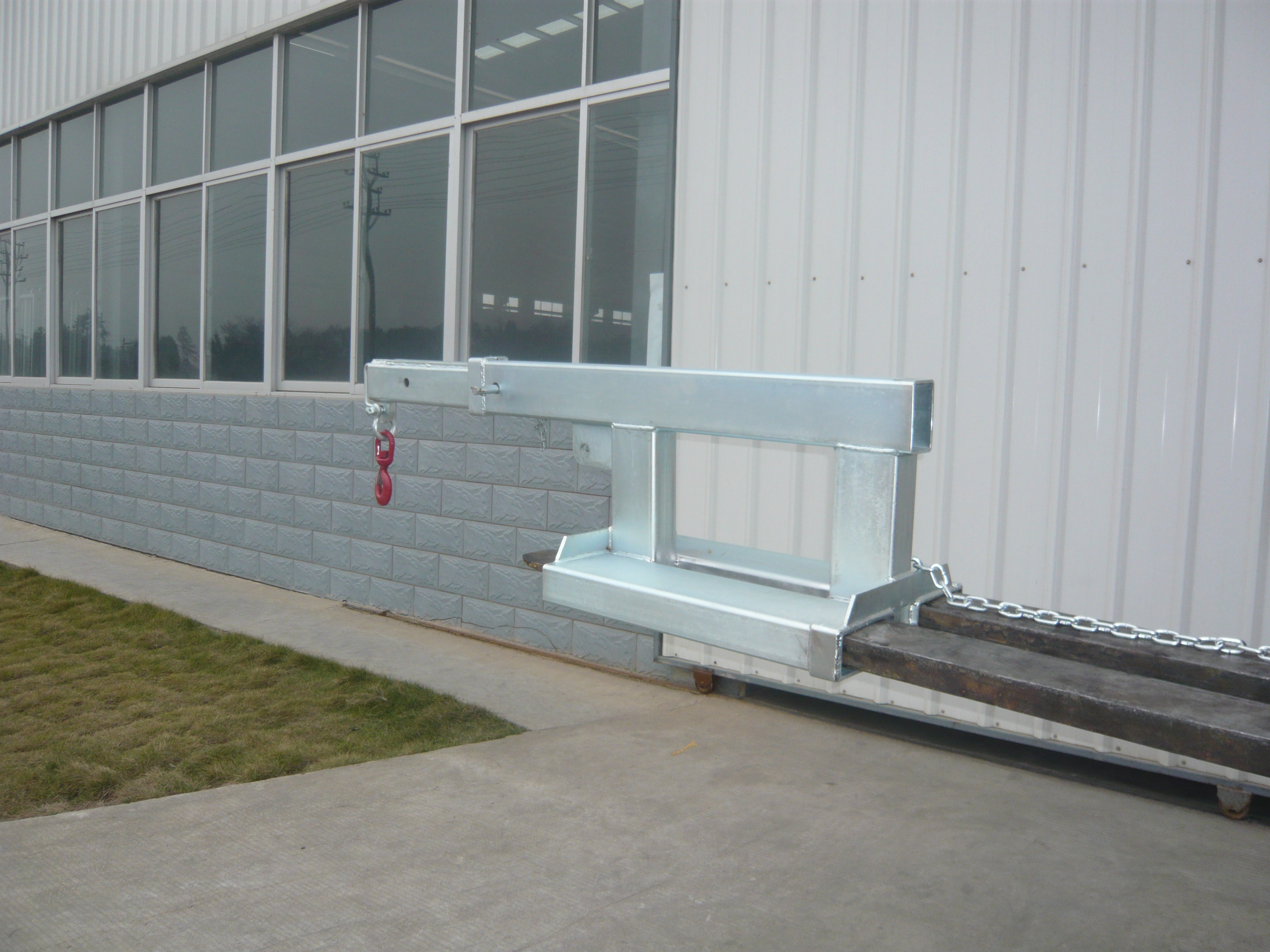

Name:FJCL25 FJCL45 FJCL50 FJCL100 Forklift Mounted Jib Crane
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments
OTHER

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

360 rotating hook

Hook locking device:The hook can be rotated and has a locking device.

Configure the fixed boltAdjust the length of the boom using the fixing bolt. 安装固定栓

Adjustable installation position: The installation position can be adjusted along the length of the fork.

High quality carbon steel shackle: The hook can be disassembled,and the all-steel material is stronger.

All steel structure:lifting arm saves effort.turn the forklift into a mobile crane.

Seiko production : Multifunctional cargo fork lifting arm.

Stronger load:Bold and thickened steel plate

Surface galvanizing process: The entire lifting arm is all galvanized,with strong corrosion resistance, waterproof and durable.


Specifications:
Model FJCL25 FJCL45 FJCL50 FJCL100
Overall Length
Retracted/Extended(m)
2.1-3.5 2-3.5 2.1-3.5 2.19-3.56
Max.SWL(kg) 2500 4500 4750 9500
ForkPocket Size(mm) 185X65 185X65 185X75 230X110
Unit Weight(kg) 130 140 170 515

SafeWorkingLoad(SWL)

PerPosition(kg/mm)

2500/950 4500/870 4750/935 9500/920
2500/1410 1300/1945 4275/1395 8550/1380
1900/1870 750/2325 3800/1855 7600/1805
1650/2000 560/2705 3300/2000 6600/2045
1250/2380 380/3085 2500/2380 5000/2425
650/2760 200/3465 1300/2760 2600/2805
380/3140 / 760/3140 1520/3185
240/3520 / 480/3520 960/3565
