Feature:

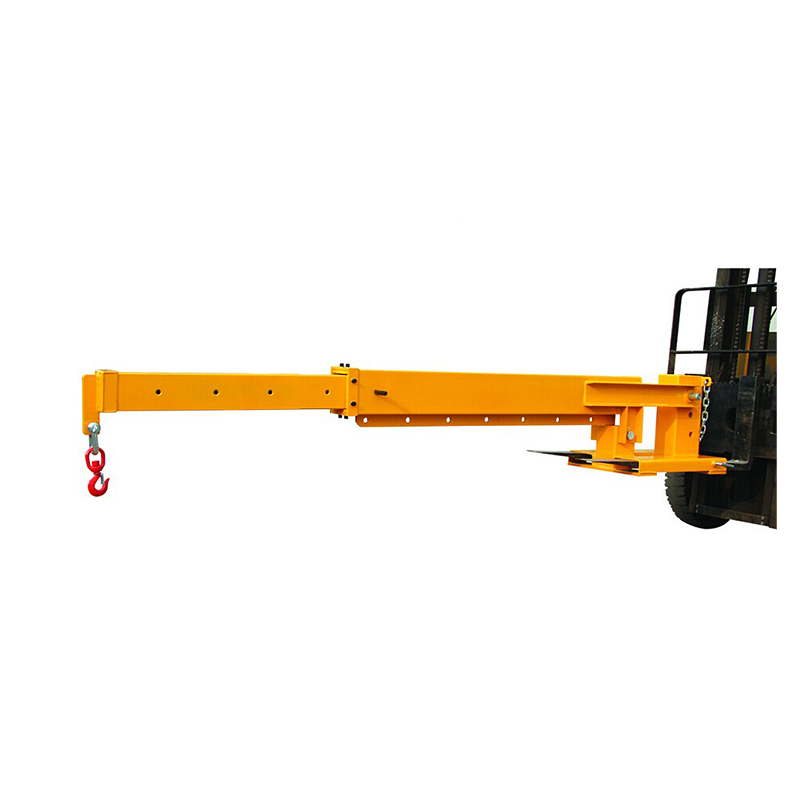

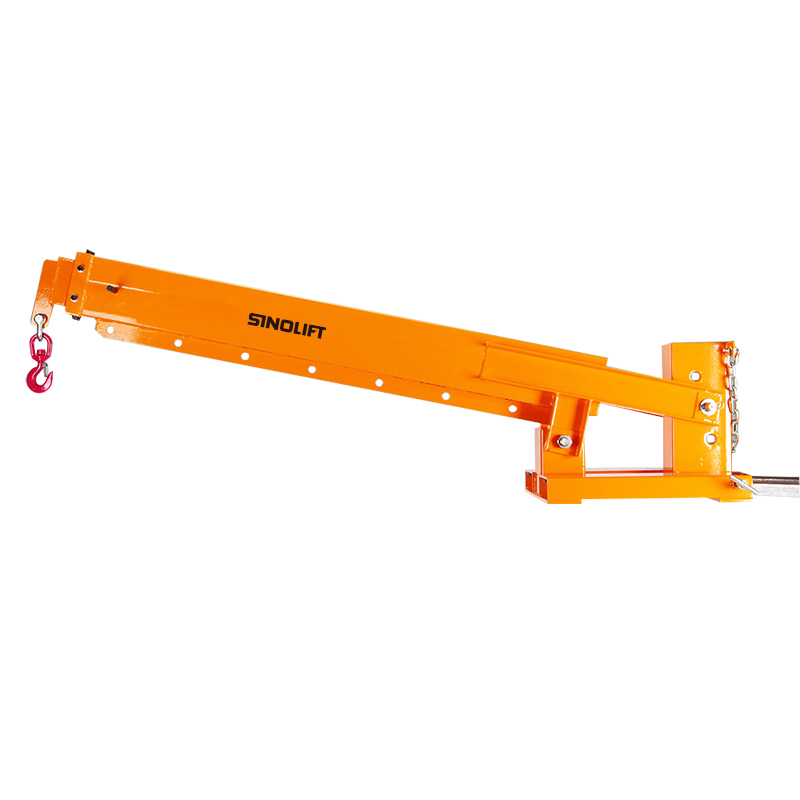

YLA01 YLB01 YLC01 Forklift Mounted Jib Crane

If you need to convert a standard forklift into a mobile crane for heavier jobs, this forklift adjustable mobile crane lifting hoist can help.

Converting a forklift into a mobile crane is easy with the fork-mounted telescopic crane lifting arm. Slide the lifting hook through the fork pockets onto the pallet forks, clamp with thumbscrews for safety, and then secure the hook to the payload. This mobile crane has a load capacity of up to 3210 kg, so you can lift large quantities of materials and containers.


Specifications:
Model YLB01
Position A B C D E F G H I J K L M
Length mm 760 990 1220 1450 1680 1910 2140 2375 2605 2835 3065 3525 3755
Capacity kg 3000 2303 1869 1572 1357 1194 1065 960 875 804 744 647 607
13° Length mm 740 965 1190 1415 1640 1865 2090 2319 2544 2769 2994 34444 3669
Capacity kg 3080 1916 1916 1611 1390 1223 1091 983 896 823 762 662 621
26° Length mm 710 919 1127 1336 1544 1752 1961 2174 2382 2591 2799 3216 3424
Capacity kg 3210 2481 2023 1707 1477 1301 1163 1049 957 880 815 709 666
Fork Width mm 166
Fork Cross-section mm 180*74
Outline Size mm 2410*540*525
Self weight kg 240
