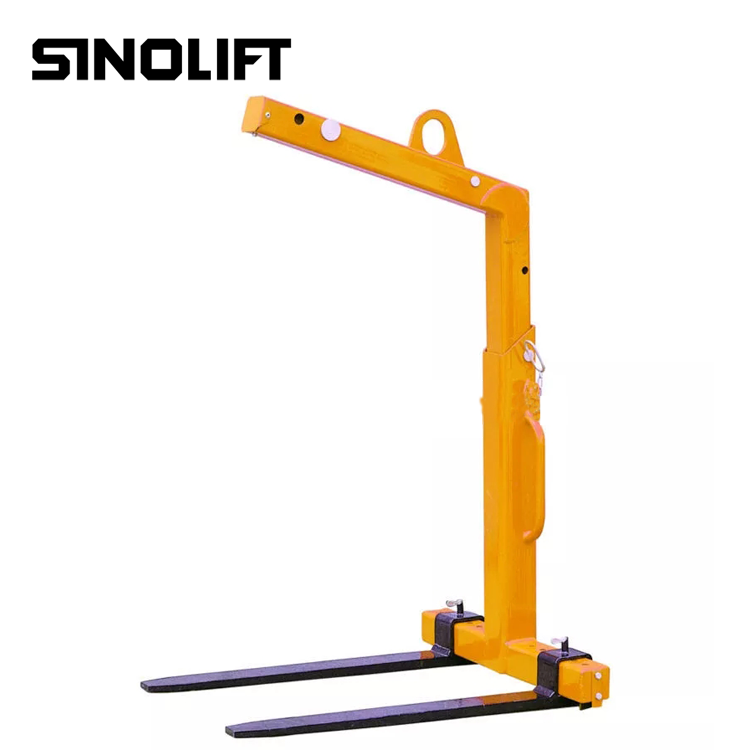

Name:CK manual adjustment of pallet crane parameters
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments
OTHER

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

CK manual balance adjustment

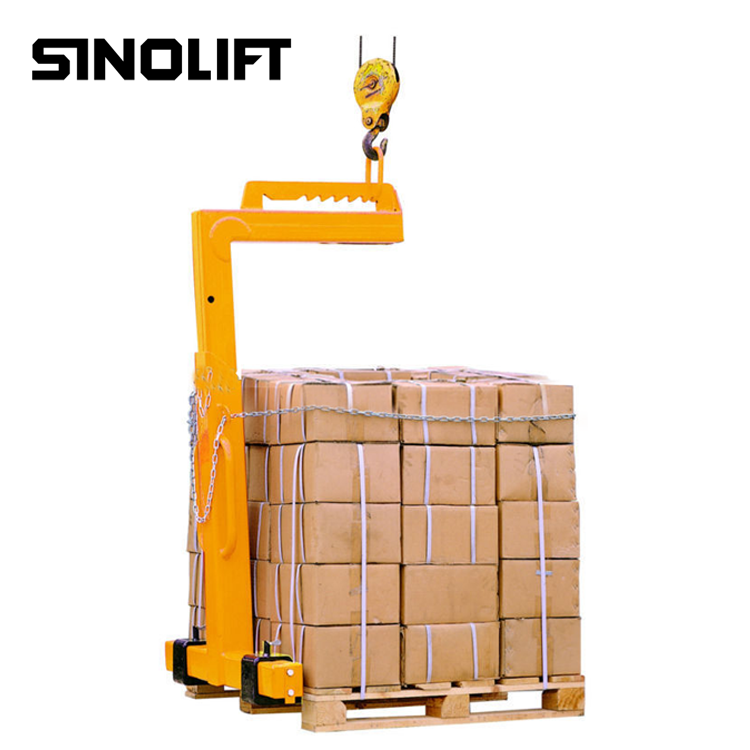

According to the weight of the goods, adjust the position of theserrations of the lifting ring to keep the goods in balance

The CK series is manually balanced, according to the weight of the goods.adjust the position of the serration of the ring

The use of high-quality steel plate.reinforcement and thickening load does not deform.the use of safer heavy-duty design, flat welding


Specifications:
model CK10 CK20 CK30 CK50
Load kg 1000 2000 3000 5000
Adjustable fork width b mm 350-900 400-900 450-900 530-1000
Hook height h1 mm 1390-1890 1640-2340 1670-2370 1700-2400
Effective height h mm 1100-1600 1300-2000 1300-2000 1300-2000
Fork length L mm 1000 1000 1000 1000
Fork size D mm 100*30 120*40 120*50 150*60
total measurement mm 1120*920*1390 1140*920*1640 1140*920*1670 1160*1020*1700
weight kg 130 200 250 370
