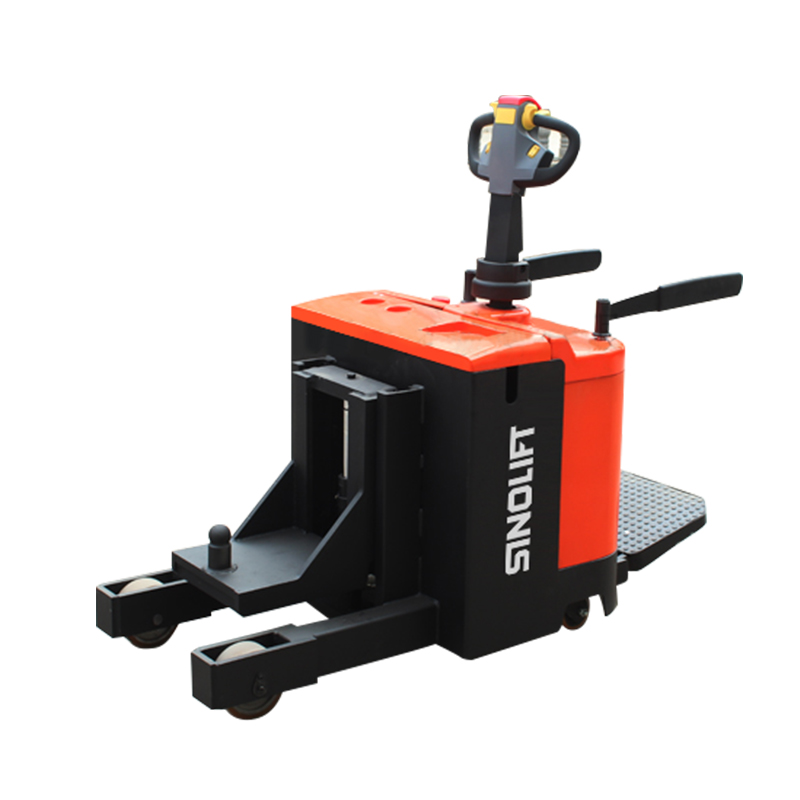

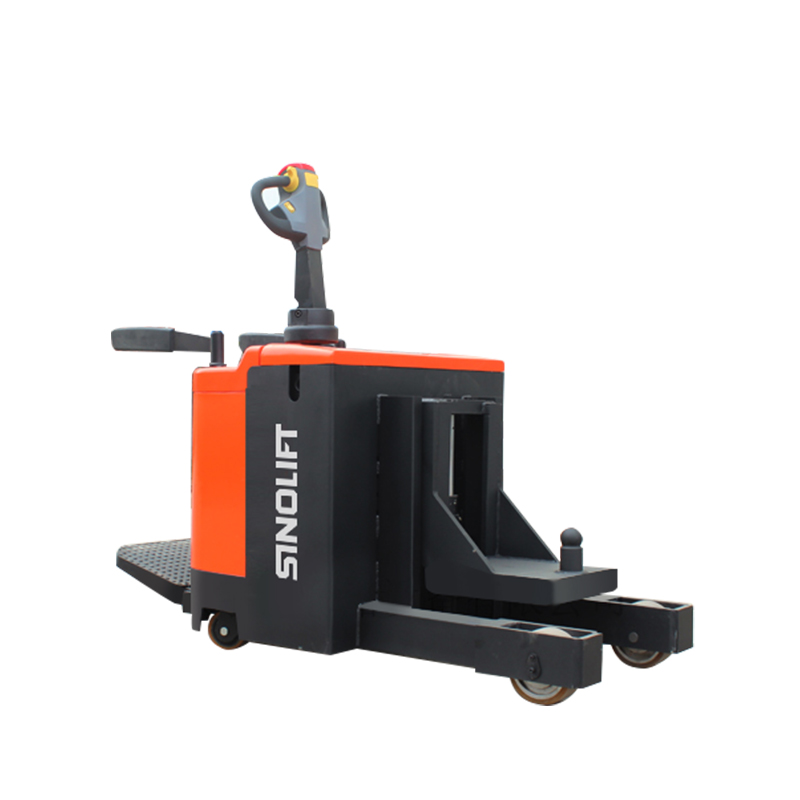

Name:EKP30B Electric A-frame Tow Tractor with Stand-on Platform
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments
Electric tow Tractor and Tugger
 Rider Eletric Towing Tractor
 Stand-on Electric Towing Tractor
 Mini Walkie Electric Tugger
 Pedestrian Electric Tugger
 Hydraulic A-frame Tractor
Spare Parts

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

Key Specifications

1.Towing capacity 3000 kg

2.Steering angle 200 degrees

3.Platform type foldable with shock absorption

4.Wheel material polyurethane

5.Battery type maintenance-free sealed battery

6.Control system CURTIS controller

Safety and Comfort

1.Emergency reverse protection

2.Quick-disconnect power switch

3.Anti-collision tiller design

4.Shock-absorbing standing platform

5.Long tiller ensures safe operation distance

Specifications:
Characteristic 1.1 Model EKP30B
1.2 Power Electric
1.3 Operation Type Standing Type
1.4 Load Traction Weight Q(kg) 4000
1.5 Wheelbase Y(mm) 1030
2.1 Self-weight (With Battery) kg /
Weight 2.2 Battery Weight kg 180
3.1 Wheel Type PU
3.2 Front Wheel ∅×w(mm) φ180X76
Wheels, Chassis 3.3 Rear Wheel ∅×w(mm) φ230X75
3.4 Balance Wheel ∅×w(mm) φ125*50
4.1 Vehicle Height h(mm) 1460
4.2 Lift Height h1(mm) 410
4.3 Lift the hook off the ground h3(mm) 225
4.4 Outer leg distance b5(mm) 650
4.5 Overall Length l1(mm) 1460
4.6 Overall Width b1(mm) 850
4.7 Ground Clearance m2(mm) 60
Dimensions 4.8 Turning Radius Wa(mm) 1360/1760
5.1 Travel Speed (Unladen/Laden) km/h 5.5/4
5.2 Max. gradeability (Unladen/Laden) % 8/3
Performance 5.3 Service Brake Electromagnetic
6.1 Drive Motor kw 2.5
6.2 Lift Motor KW 2.2
6.3 Battery Lead Acid
6.4 Battery voltage/nominal capacity V/Ah 24V210Ah
Motor, Charger 6.5 Charger v/A 24V30A
7.1 Type of drive control AC
      Other 7.2 Sound level at the driver's ear acc. to EN12053 dB(A) 75
The data is for reference only, and the details shall be subject to the actual vehicle.
