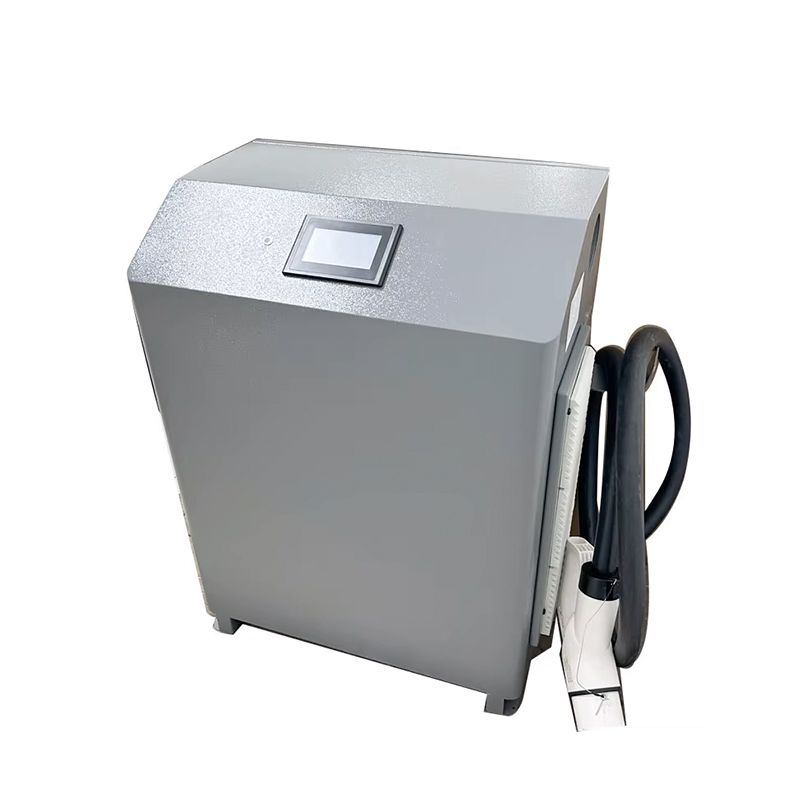

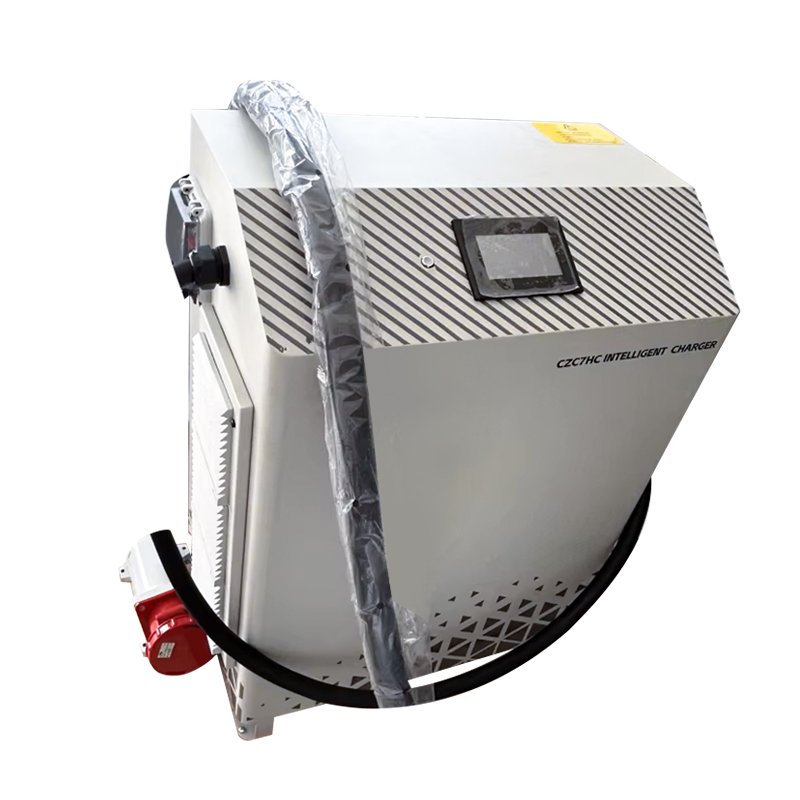

CZC7HC Series

High Voltage Lithium Charger

This machine is suitable for charging electric vehicles such as electric forklifts, pallet trucks and trolleys that use lithium batteries as power.

The power module comes with a standard isolated CAN communication port for communication with the controller.

Forced start (OV) function, charger automatically shuts down if the connecting cable slips off in the middle of charging (battery disconnection detection).

Adopt 4.3” serial LCD color touch screen to display charging process parameters; set up each parameter of charging stage.

Normal Working Conditions

(1) Altitude does not exceed 1000 meters;

(2) Ambient temperature is not higher than + 45℃ and not lower than - 10℃;

(3) Air relative humidity is not greater than 95% (when the ambient temperature is 20±5℃);

(4) Environment free from rain and snow, conductive dust, and explosion hazards;

(5) Environment containing gases or vapors that can corrode metals and damage insulation;

(6) Place without severe vibration and impact;

(7) This machine should be placed in a ventilated and dry place, away from high temperature, dust, and corrosive gases;

(8) To ensure the normal operation of this machine, the surrounding area should be well-ventilated with a certain distance kept from other objects, and the ventilation opening should be checked for blockage.
