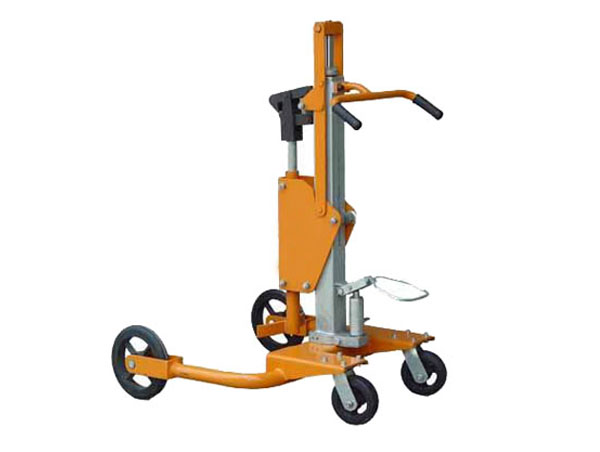

Name:Drum Carrier COY0.3A
Click to view larger

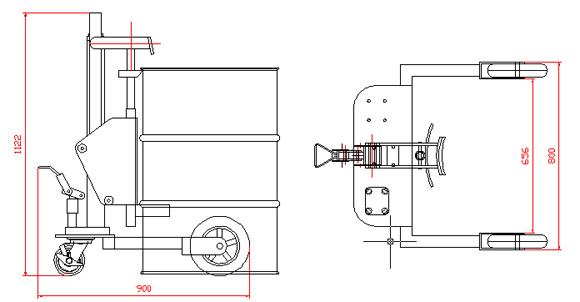

Diagrams:

Products List
Portable Drum Handling Equipment
 Portable Drum Truck
 Japanese Style Hand Drum Porter
 Hand Drum Porter
 Semi-Electric Hydraulic Stacker
 Manual Drum Mover
 Drum Transporter Handler
 Panel Roll Handling Trolley
 Drum Carrier Dispenser
 Wizard Drum Cradles
 Hand Drum Trolley
 Drum Dolly and Drum Caddy
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

* This type of drum porter allows easy lifting with a Hydraulic Foot Pump.

* The large wheels allow for easy transport even on rough floors.

* Easily lifts the drum with a hydraulic foot pump transporting.

Specifications:
MODEL COY0.3A
Drum Size mm 600x900
Capacity kg 300
Lift Height mm 0-400
Overall Length mm 1062
Overall Width mm 840
Overall Heigth mm 1135
Self Weight kg 90
Front Wheel mm 250
Rear Wheel mm 150
Previous:COY0.3A Drum CarrierNext:COY0.3B Drum MoverReturn
