Products – Portable Drum Handling Equipment

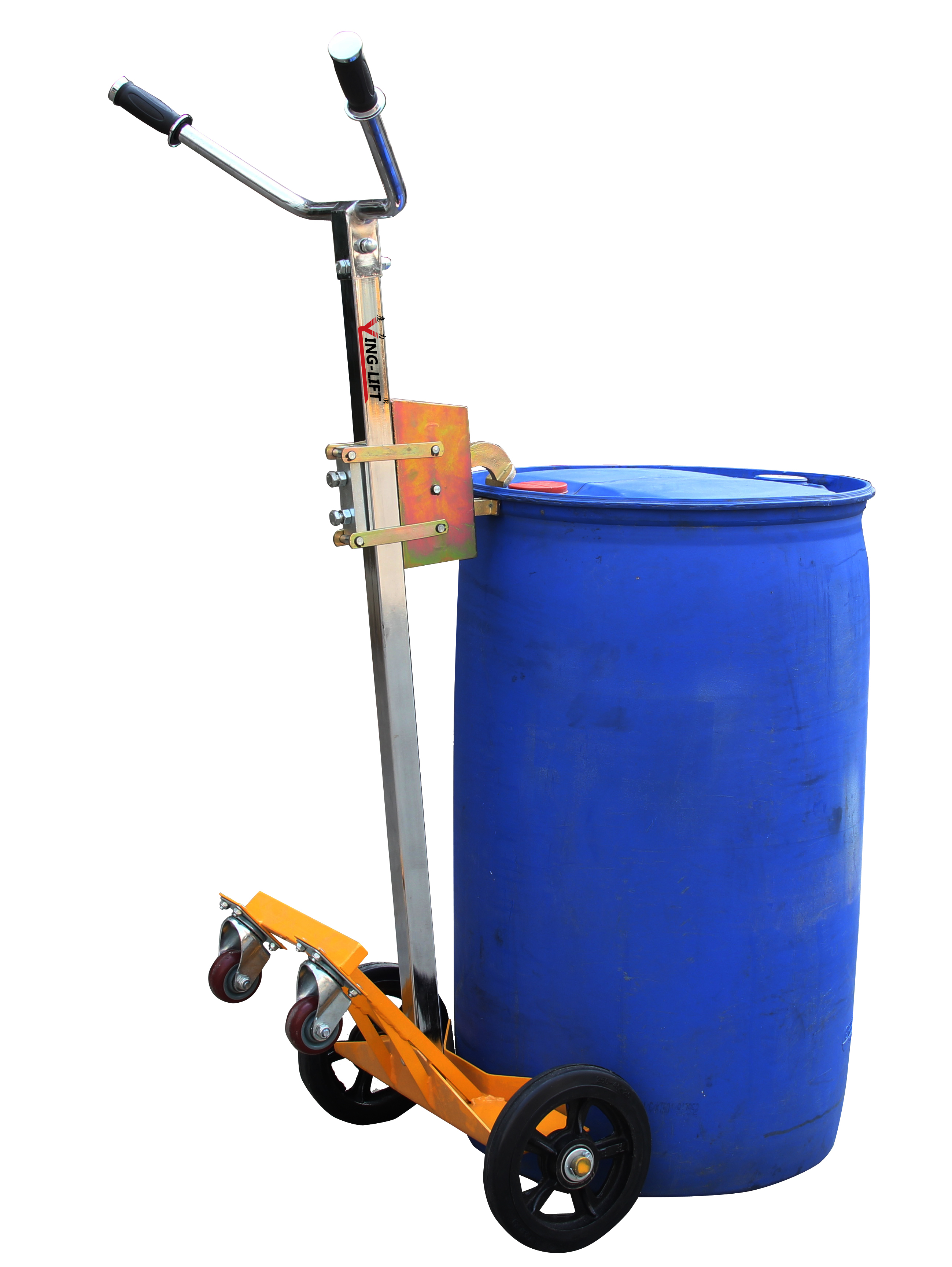

Name:DE450D Mechanical Hand Drum Truck
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
 Portable Drum Truck
 Japanese Style Hand Drum Porter
 Hand Drum Porter
 Semi-Electric Hydraulic Stacker
 Manual Drum Mover
 Drum Transporter Handler
 Panel Roll Handling Trolley
 Drum Carrier Dispenser
 Wizard Drum Cradles
 Hand Drum Trolley
 Drum Dolly and Drum Caddy
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

The DE450D drum hand drum truck is suitable for the transporting of 200 litre plastic mauser style drums and is adjustable to suit 30 to 55 gallon drums (200 litres).

The infinite height adjustment and an automatic safety lock, along with the unique parrot beak clamping system facilitates drum engagement, while rear castor wheels ensure load stability.

Self-standing by its kickstand, Eagle-grip structure with powerful mechanical interaction.

Specifications

Load Capacity: 450kg

Wheels: 250mm diameter rubber on cast centre

Finish: painted yellow enamel


Specifications:
Model DE450D
Rated Capacity kg 450
Drum Size 55 gallon steel or 210 L plastic drums
Overall Size mm 1480x600x980
Wheel (Poly) size mm 250x50
Wheel (Poly) size mm 75x32
Net Weight kg 24

Previous:DE450C Mechanical Hand Drum TruckNext:DT500 Drum LoaderReturn
