Products – Portable Drum Handling Equipment



Name:HD80A Mechanical Drum Dumper
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
 Portable Drum Truck
 Japanese Style Hand Drum Porter
 Hand Drum Porter
 Semi-Electric Hydraulic Stacker
 Manual Drum Mover
 Drum Transporter Handler
 Panel Roll Handling Trolley
 Drum Carrier Dispenser
 Wizard Drum Cradles
 Hand Drum Trolley
 Drum Dolly and Drum Caddy
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

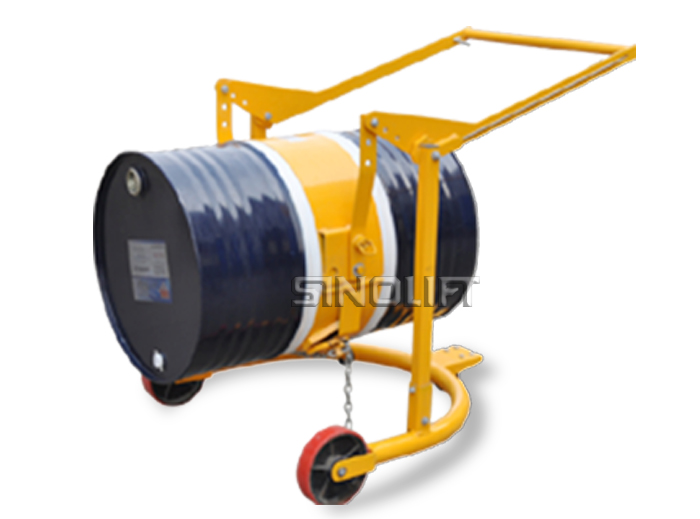

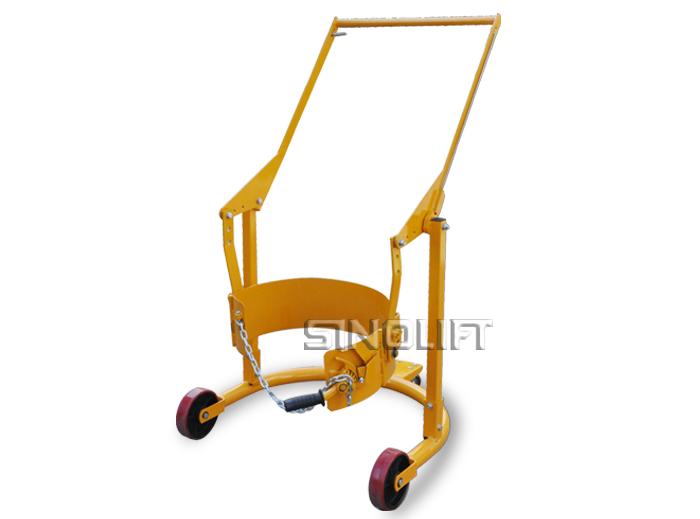

Mobile-Carrier raises, transports, rotates, tilts and drains fully loaded drums.

It carries the full weight of the drum.

Dual, fingertip operated locks secure the raised drum. It can lock a drum in the vertical position to avoid spills or in the horizontal position for draining.  When the drums is unlocked from the Drum Carrier, the drum may be turned end-over-end  to agitate contents, or tipped and held manually at any angle.


Specifications:
Model HD80A (COS0.4)
Capacity kg/lbs 365/800
Accepable Drum Style 55 gallon (210 liters), Steel
Drum Size (Dia.) mm/inch Ø572mmØ22-1/2"
Drum Height mm/inch 915mm/36"
Net Weight kg/lbs 50/110

Previous:DT500 Drum LoaderNext:HD80B Mechanical Drum DumperReturn
