Products – Drum Dumping Equipment

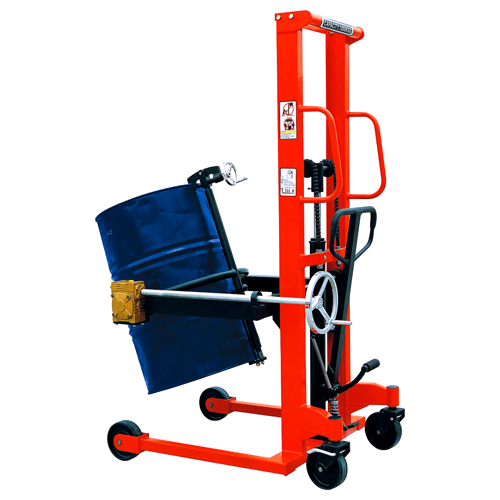

Name:COT0.35B Hand Drum Rotating Truck
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
 Mechanical Drum Dumper
 Manual Hydraulic Drum Dumper
 Semi-Electric Hydraulic Drum Dumper
 Full Electric Hydraulic Drum Dumper
 Pneumatic and Other Drum Dumper
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

1.Ideal for applications where barrels are stacked, transported or being poured of stacking,
transporting and poring oil aslant.
2.The slope of the barrel is controlled by turning the control handle.
3.Conforms to EN1757-

Specifications:
Model COT0.35B
Rated Capacity kg 350
Lifting Height mm 1500
Overall Length mm 1190
Overall Width mm 890
Overall Height mm 2020
Net Weight kg 155
Previous:COT0.35  Hand Drum Rotating TruckNext:COT0.35C Hand Drum Rotating TruckReturn
