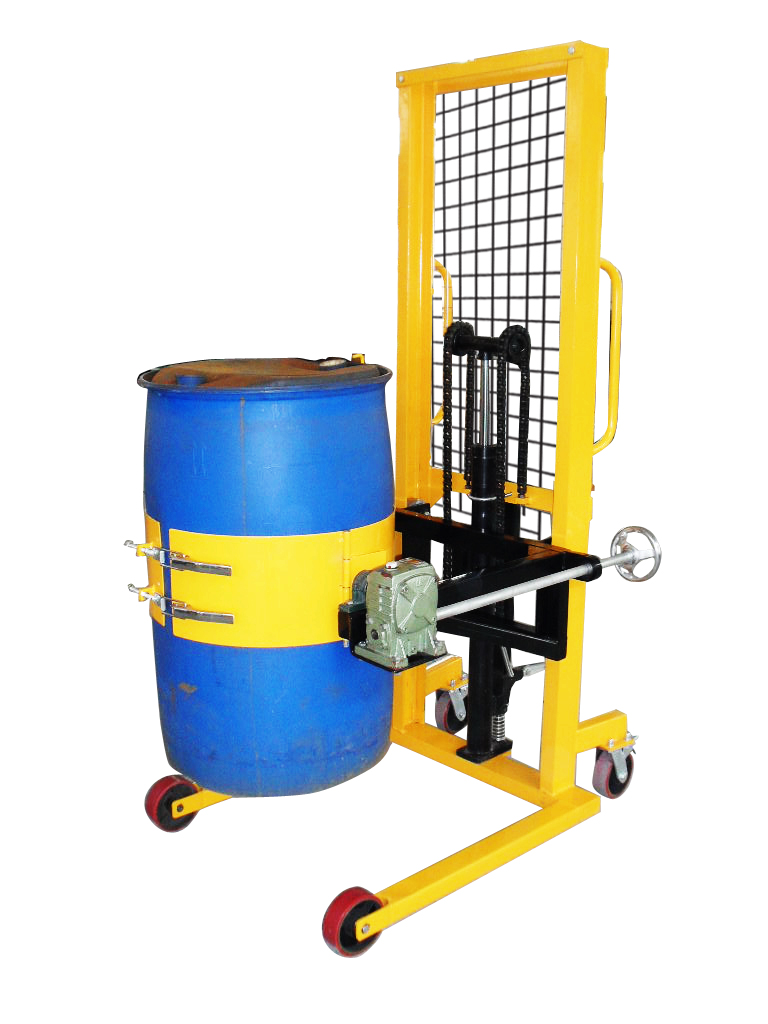

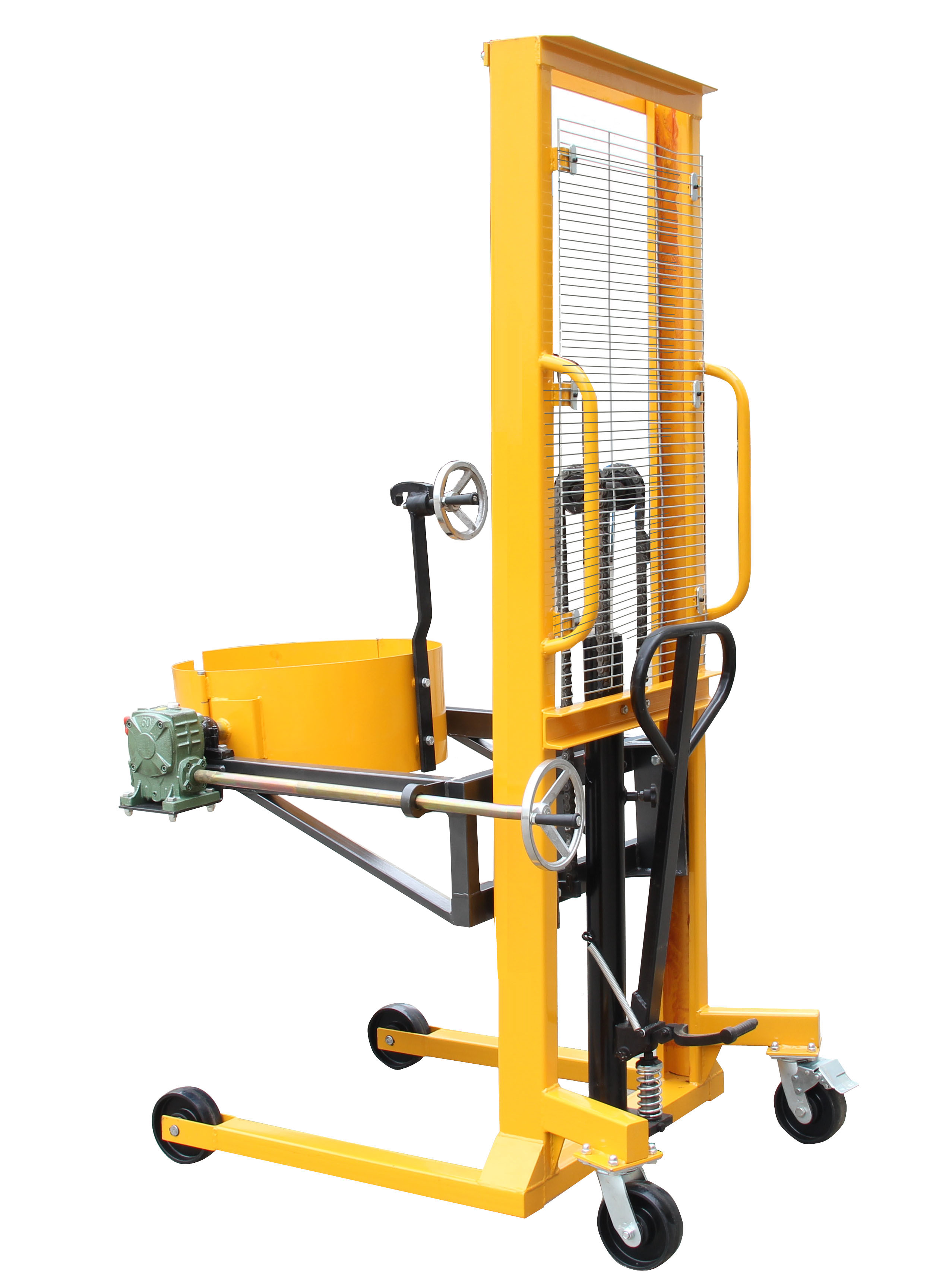

Name:DA400A DA400A-1 Hydrulic Anchorear Drum Dumper
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
 Mechanical Drum Dumper
 Manual Hydraulic Drum Dumper
 Semi-Electric Hydraulic Drum Dumper
 Full Electric Hydraulic Drum Dumper
 Pneumatic and Other Drum Dumper
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

Single-stage vertical-lift drum pourers allow you to pour a drum up to 160 cm high.

Manual lift with manual drum tilt ,

Hoop-type structure which is fit for operating with steel oil drum and PE oil drum; Excellent-quality oil cylinder and Ctype mast.

Equipped with weighing scale allow you to weigh your drum while you pour to dispense precise amounts as needed. The DA400A-1 With electronic scale built-in; operational functions include: ZERO, TARE and weighting, of accuracy: ±3‰

Specifications:
Model DA400A DA400A-1
Rated capacity kg 400 400
Max. lifting height mm 1600 1600
Drum size / 30 gallon (Ø450x700)-55 gallon ( (Ø572x900) steel, 210L plastic
Drum tilting (electric/manual) / manual manual
With weighing scale yes/no no yes
Load rollers size mm Ø80x60 Ø80x60
Steering wheel size mm Ø150x50 Ø150x50
Width of leg (Inner/Outer) mm 630/810 630/810
Leg Length mm 770 770
Charger for weighing scale V 6
Overall size (LxWxH) mm 1400x1000x2100 1400x1000x2100
Net weight KG 170 175
