Products – Drum Dumping Equipment

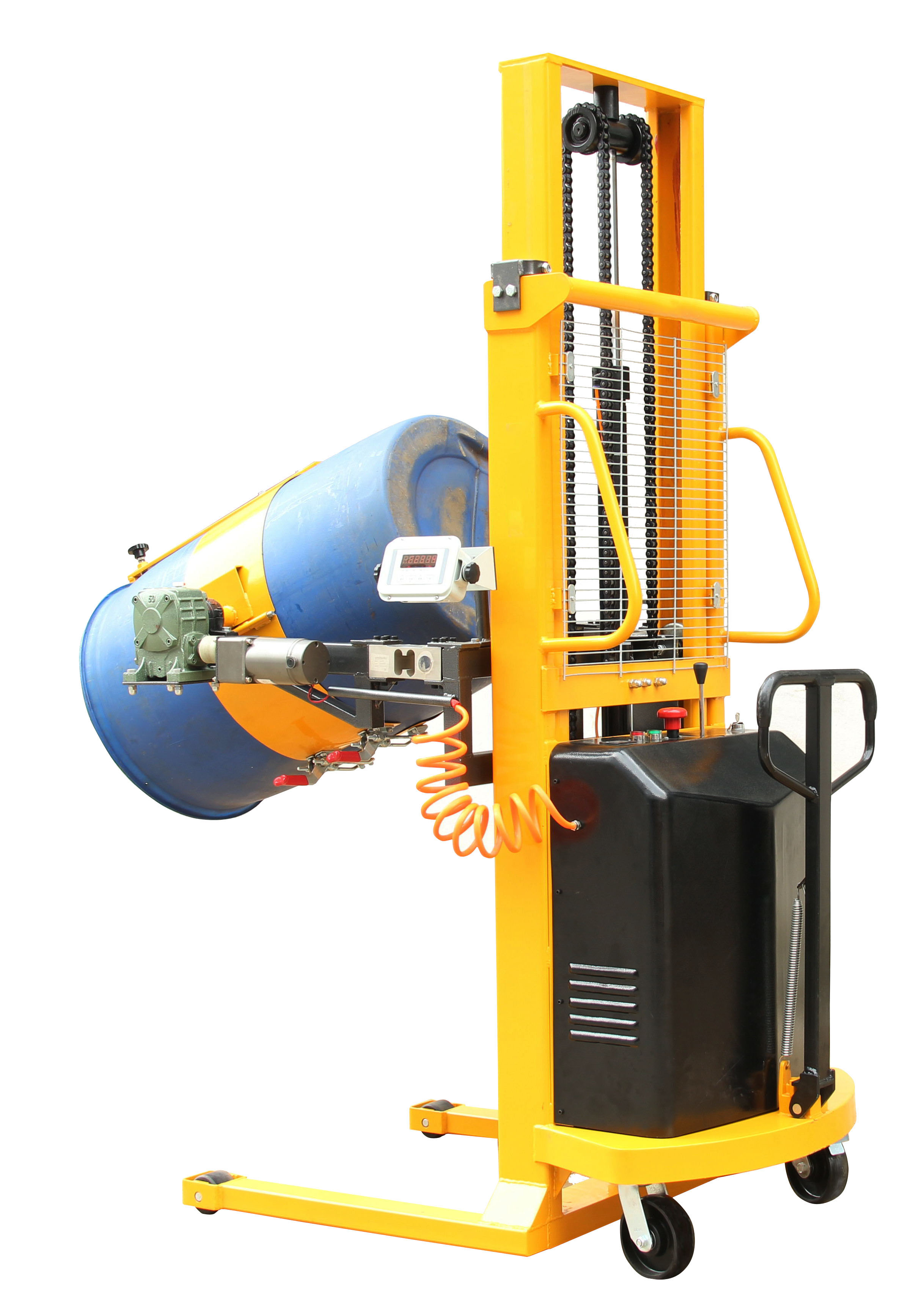

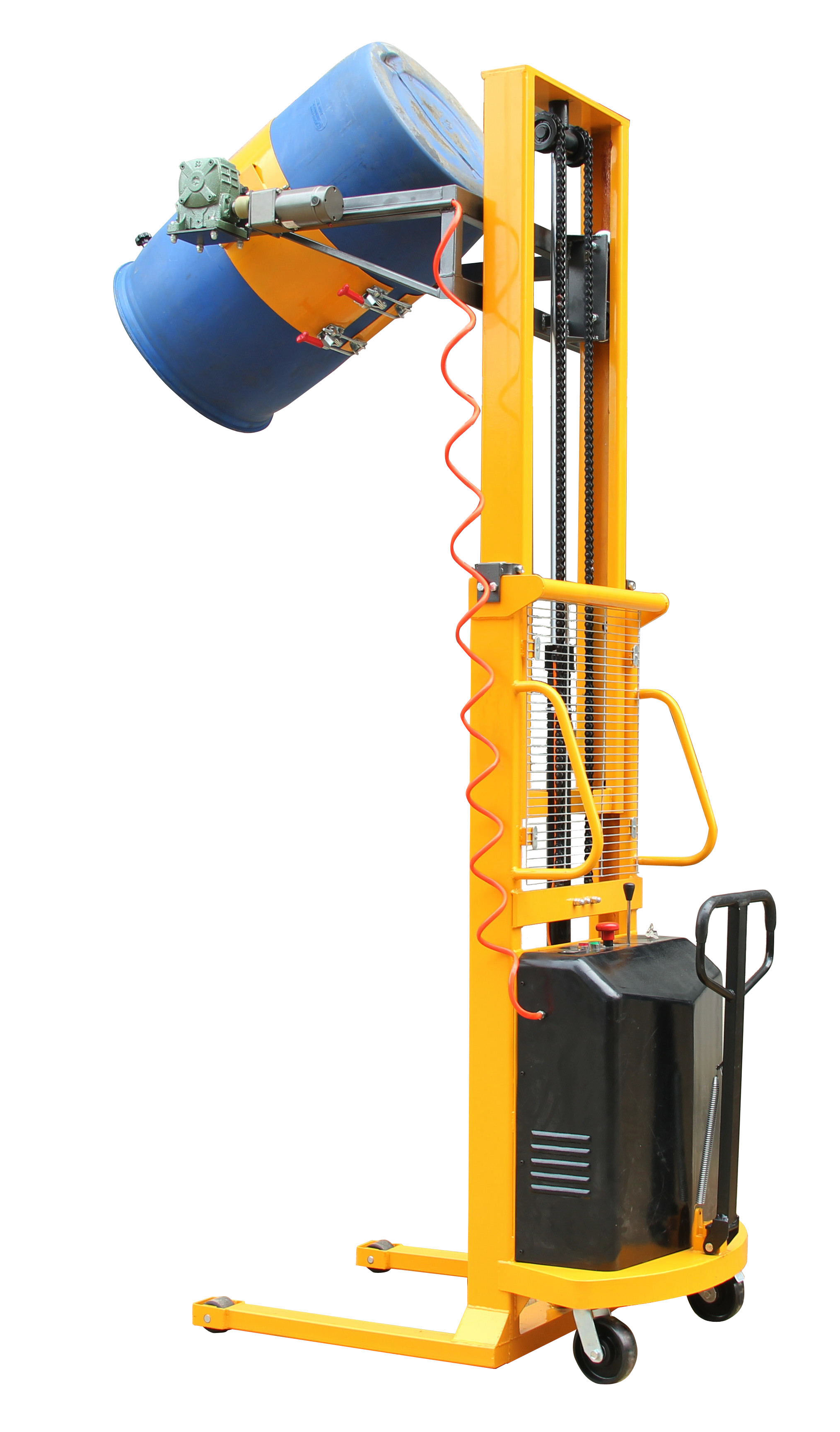

Name:YL450A YL450A-1 Electric Anchorear Drum Dumper
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
 Mechanical Drum Dumper
 Manual Hydraulic Drum Dumper
 Semi-Electric Hydraulic Drum Dumper
 Full Electric Hydraulic Drum Dumper
 Pneumatic and Other Drum Dumper
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

Model DA450A-1 Scale-equipped drum stackers allow you to weigh your drum while you ,

pour to dispense precise amounts as needed. The scale includes the functions: ZERO, TARE and weighting, of accuracy: ±3‰

Simple-and-light-structure design and hoop-type structure which is fit for operating with steel

oil drum and PE oil drum, easy to operate and saves effort

Power lift and power drum Tilt for ergonomic drum pouring

Two-stage vertical-Lift drum pourers allow you to pour a drum up to 245 cm high


Specifications:
Model YL450A YL450A-1
Rated capacity kg 450 450
Max. Lifting height mm 2450 2450
Drum size 30 gallon (Ø450x700)-55 gallon ( (Ø572x900) steel, 210L plastic
Powered lifting yes/no yes yes
Drum tilting (electric/manual) electric electric
With weighing scale yes/no no yes
Lifting speed mm/s 120 120
Rotating speed of dumper 180°/30s 180°/30s
Load rollers size mm Ø80x60 Ø80x60
Steering wheel size mm Ø150x50 Ø150x50
Width of legs (Inner/Outer) mm 640/800
Leg length mm 740 740
Turning radius mm 1750 1750
Lifting Motor Power kw 1.5 1.5
Battery V/AH 12/120
Charger for Stacker V 12
Charger for Weighing Scale V 6
Overall Size(LxWxH) mm 1500x950x2100 1500x950x2100
Net Weight KG 304 312
