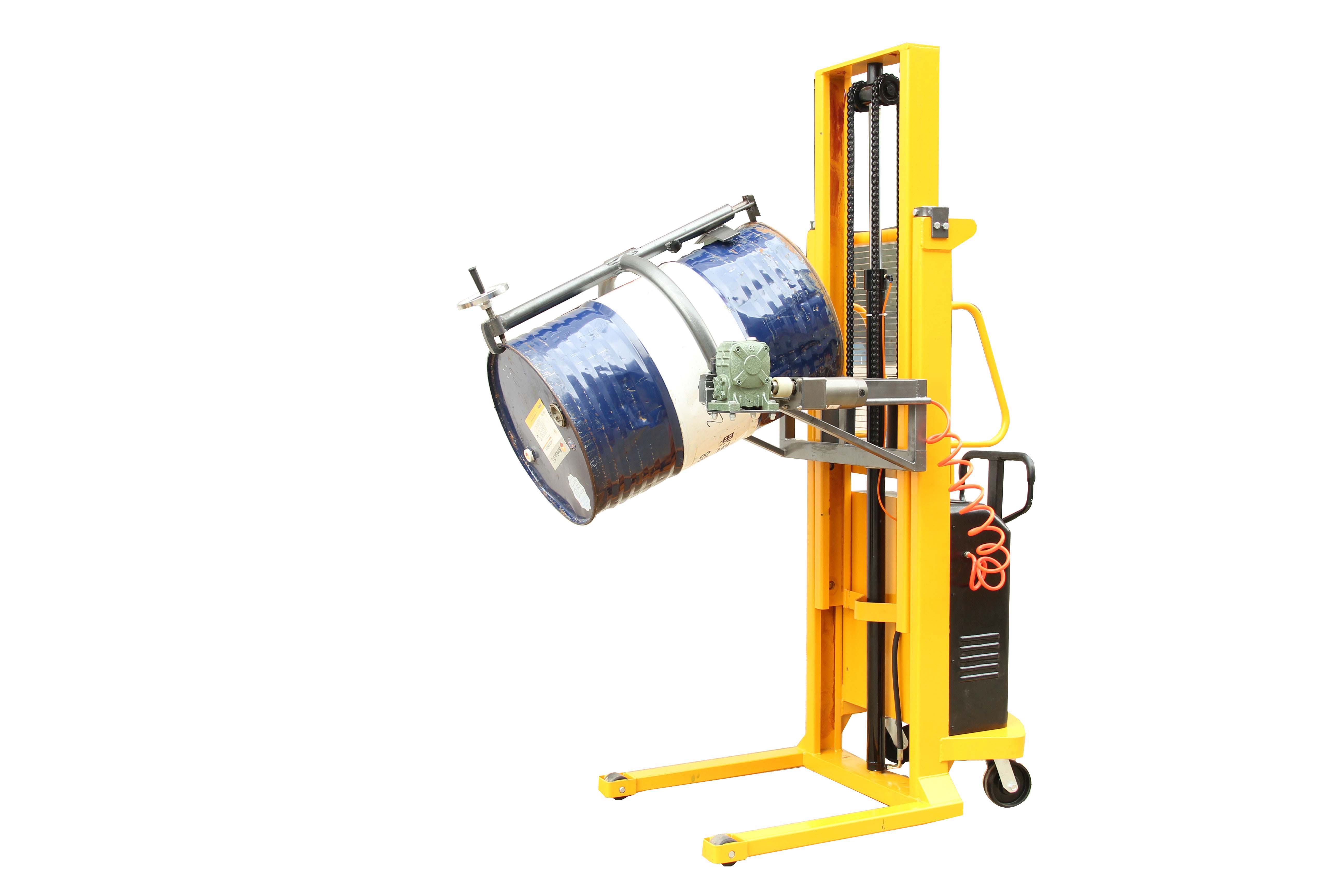

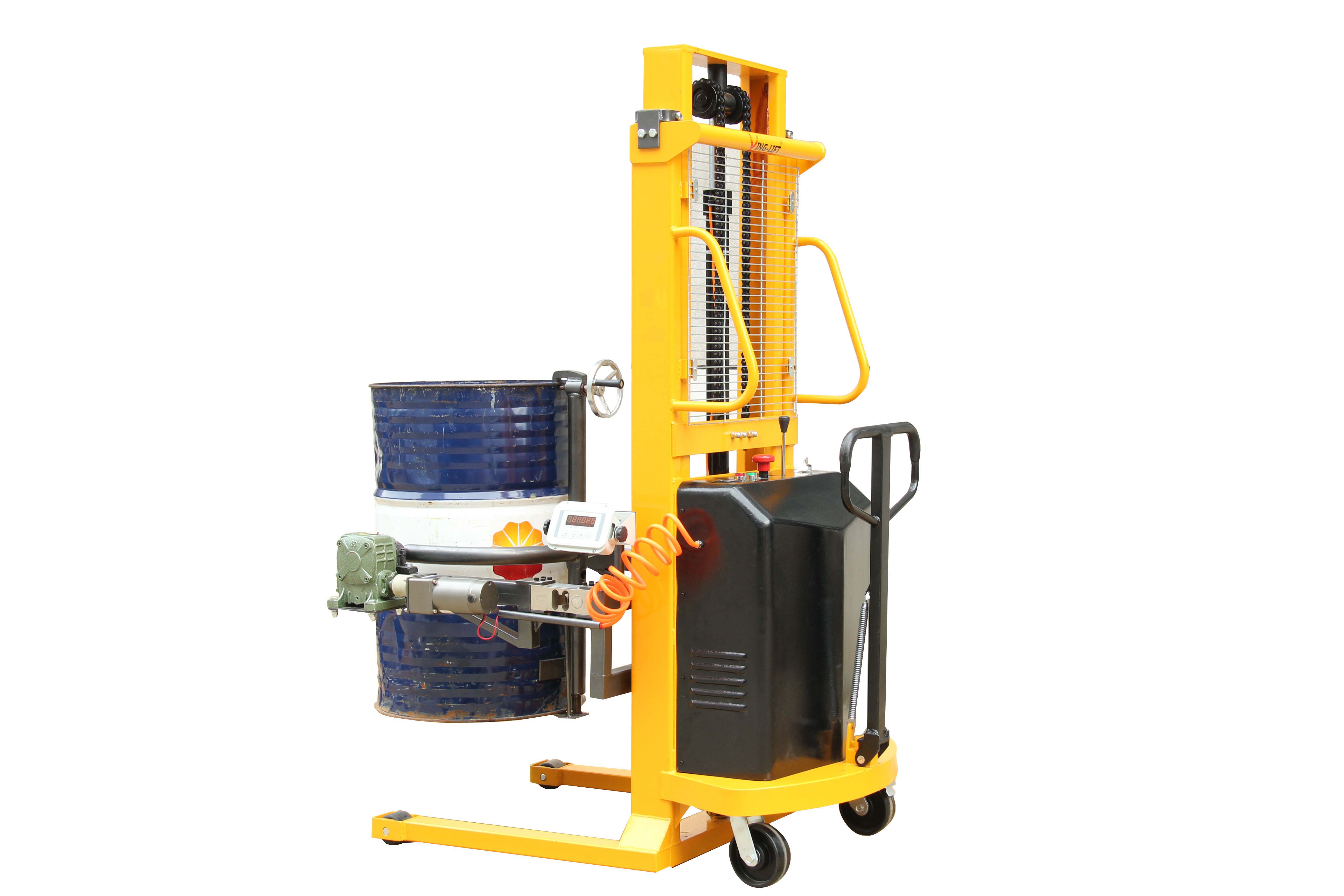

Name：YL450B YL450B-1 Electric Gripper Drum Dumper
Click to view larger
Diagrams：

Products List
Portable Drum Handling Equipment
Forklift Mounted Drum Grab
Forklift or Crane Mounted Drum Handler
Mini Stacker
Work Positioner
Platform Hand Trolley
Access platform
Below-Hook or Hoist Drum Lifter
Drum and Cylinder Handling Trolley
Pallet Tilter
Hoisting And Lifting Equipment
Reel And Roll Handling Equipment
Mechanical Roll Pallet Truck
Drum Dumping Equipment
 01 Mechanical Drum Dumper
 02 Drum Stacking Tilter Dumper
 03 Manual Hydraulic Drum Dumper
Mate Series Lift Trucks
Forklift Attachments

 Business Line: 4007-166-180
 Tel：+86 21 58003681
              +86 21 68014500
 Fax：+86 21 68014262
 Website：http://www.sinoliftdrum.com
 Email：drum@sinolift.com
 Skype：sinolift

Feature：

Ideal for drum transportation, stack and feed .
Travelled by hand, lifted by electricity.
Electric controlling rotating with premium motor.

With electronic scale built-in the YL500B-1,Precise weighting system with red light tube display in single window

Automatic zero tracking, total subtraction and  weight accumulation , simple calibration, can both with AC and DC power


Specifications：
Model YL450B YL450B-1
Rated capacity kg 450 450
Max.  Lifting height mm 2450 2450
Drum size 30 gallon (Ø450x700)-55 gallon ( (Ø572x900) steel, 210L plastic
Powered lifting yes/no yes yes
Drum tilting (electric/manual) electric electric
With weighing scale yes/no no yes
Lifting speed mm/s 120 120
Rotating speed of dumper 180°/30s 180°/30s
Load rollers size mm Ø80x55 Ø80x55
Steering wheel size mm Ø150x50 Ø150x50
Width of legs (Inner/Outer) mm 640/800
Leg length mm 740 740
Turning radius mm 1850 1850
Lifting Motor Power kw 1.5 1.5
Battery V/AH 12/120
Charger for Stacker V 12
Charger for Weighing Scale V 6
Overall Size(LxWxH) mm 1400x950x2100 1400x950x2100
Net Weight kg 302 314
