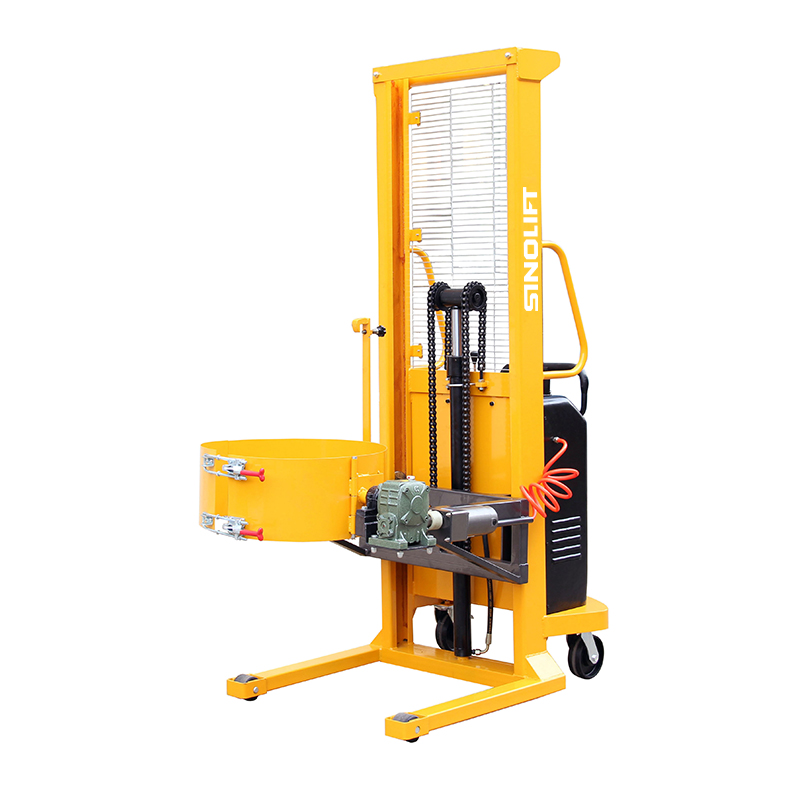

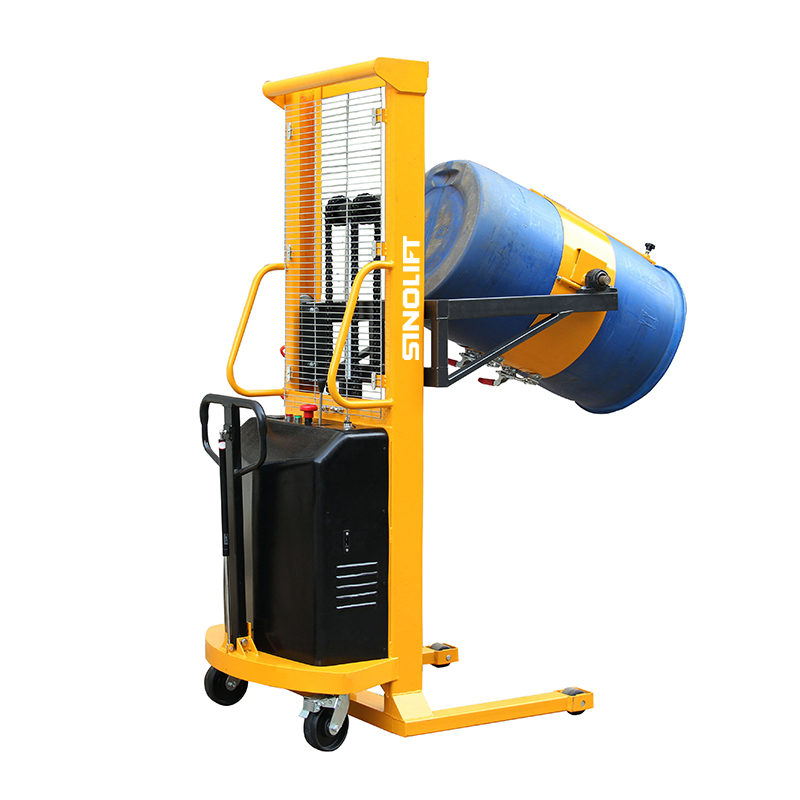

Name:YL500A YL500A-1 YL500A-2 Electric Automatic Drum Dumper
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
 Mechanical Drum Dumper
 Manual Hydraulic Drum Dumper
 Semi-Electric Hydraulic Drum Dumper
 Full Electric Hydraulic Drum Dumper
 Pneumatic and Other Drum Dumper
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

Unique multi-function: Lifting, carry, turnover, dumping, easily and safety operate.

Tightly lock oil drum at horizontal or vertical position by left and right locking handles so that it will be dumped easily or free of overflow.

It allow to overturn the drum by electric motor and stir it to mix the contents evenly when the locking handle is loosed, and the drum can be maintained at any angle.

A combination of system to ensure that the mouth airfield effective fixation.

Oil drum carrier is of simple-and-light-structure design and hoop-type structure which is fit for operating with steel oil drum and PE oil drum, easy to operate and saves effort

With electronic scale built-in YL500A-1 and YL500A-2(with printer); operational functions include: ZERO, TARE and weighting, of accuracy: ±3‰


Specifications:
Model YL500A YL500A-1 YL500A-2
Rated capacity kg 500 500 500
Max. lifting height mm 1600 1600 1600
Drum size 30 gallon (Ø450x700)-55 gallon ( (Ø572x900) steel, 210L plastic
Powered lifting yes/no yes yes yes
Drum tilting (electric/manual) electric electric electric
With weighing scale yes/no no yes no
Lifting speed mm/s 120 120 120
Rotating speed of dumper 180°/30s 180°/30s 180°/30s
Load rollers size mm Ø80x55 Ø80x55 Ø80x55
Steering wheel size mm Ø150x50 Ø150x50 Ø150x50
Width of legs (Inner/Out) mm 640/800
Leg length mm 630 630 630
Turning radius mm 1750 1750 1750
Lifting motor power KW 1.5 1.5 1.5
Battery V/AH 12/120
Charger for stacker V 12
Charger for weighing scale V 6
Overall size(LxWxH) mm 1400x1000x2060 1400x1000x2060 1600x1050x2060
Net Weight KG 250 255 250
