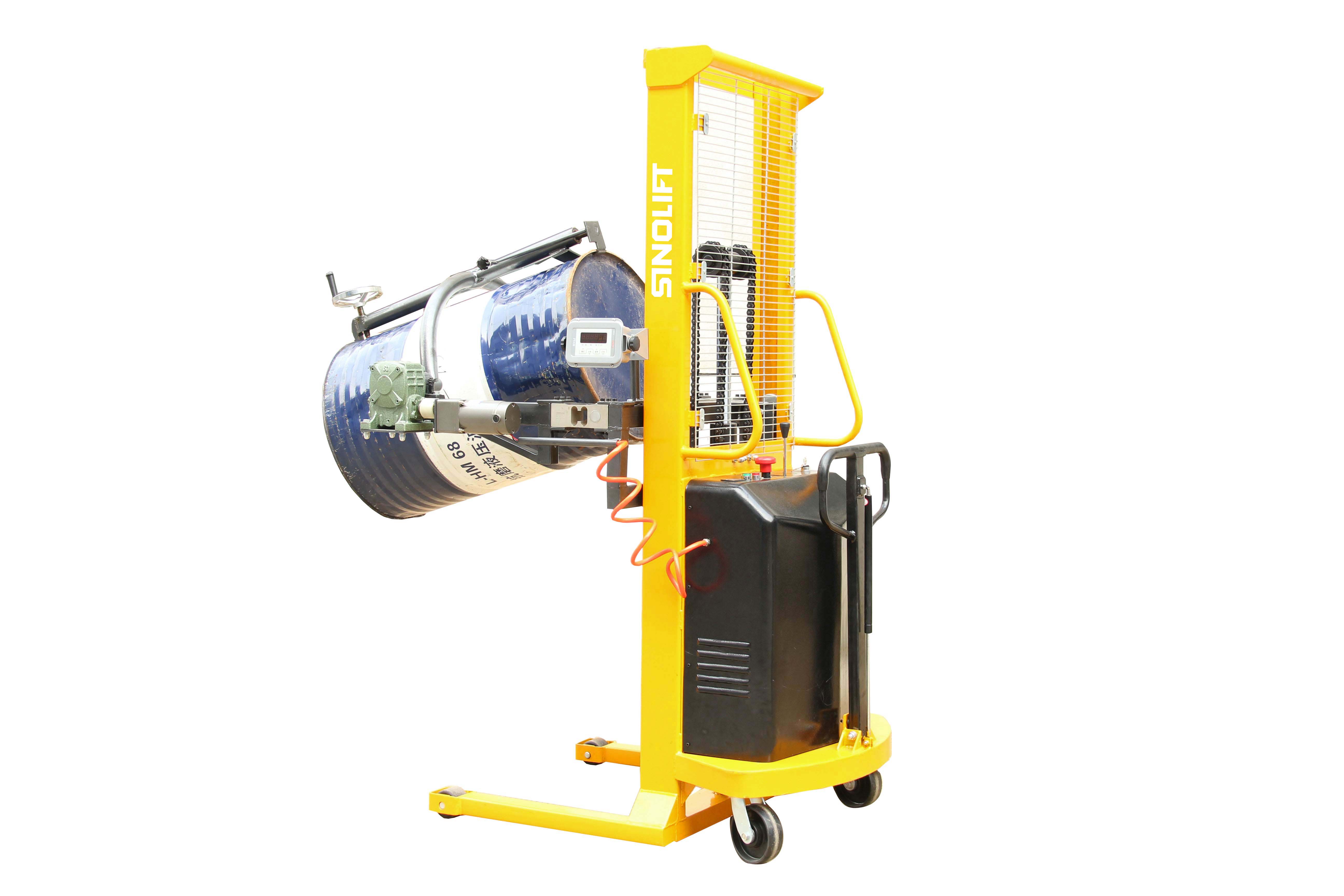

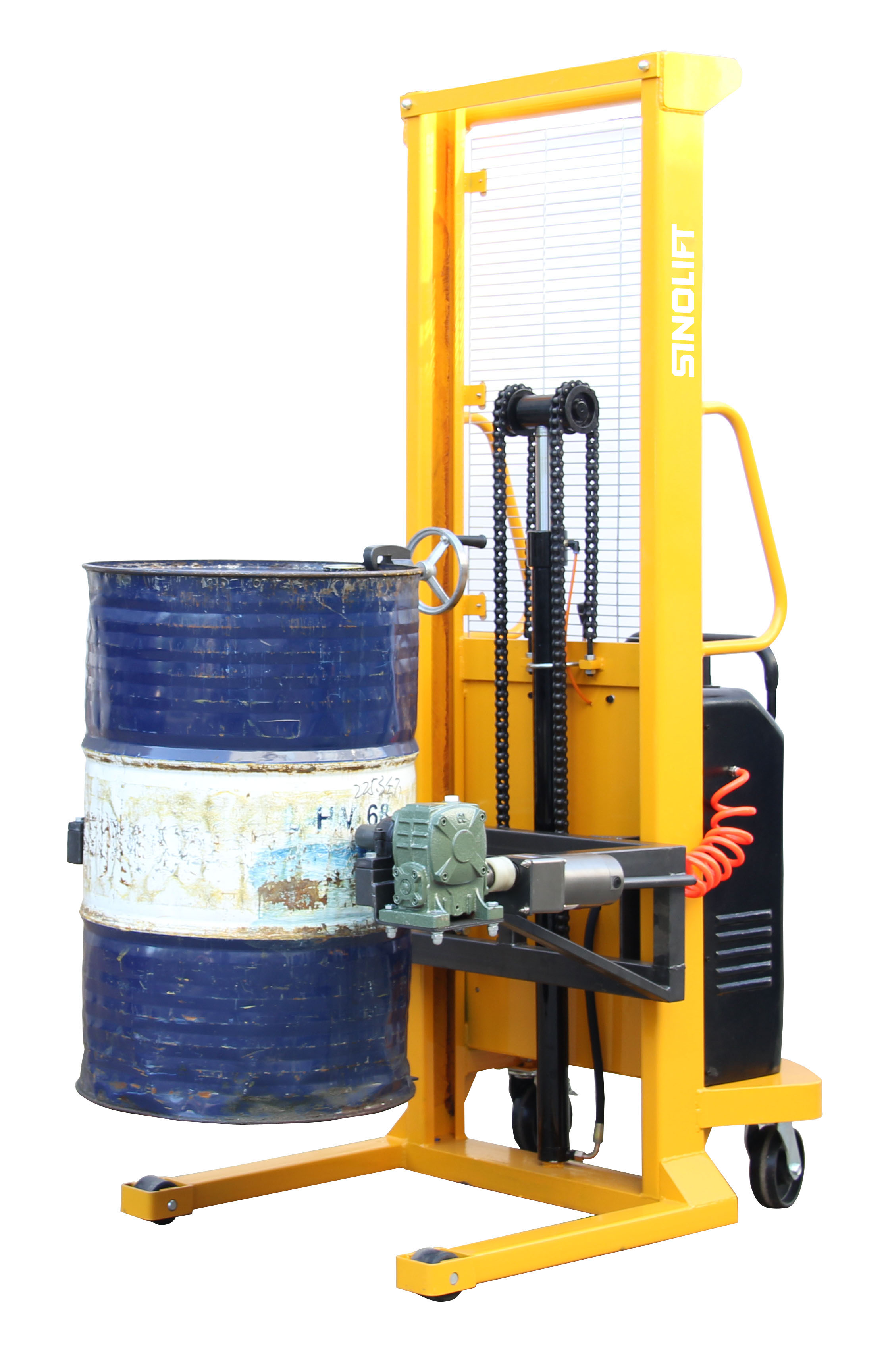

Name:YL500B YL500B-1 Electric Automatic Drum Dumper
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Forklift Mounted Drum Grab
Forklift or Crane Mounted Drum Handler
Mini Stacker
Work Positioner
Platform Hand Trolley
Access platform
Below-Hook or Hoist Drum Lifter
Drum and Cylinder Handling Trolley
Scissor Lift Platform
Stationary Lift Platform
Pallet Truck
Pallet Tilter
Hoisting And Lifting Equipment
Reel & Roll Handling Equipment
Mechanical Roll Pallet Truck
Drum Dumping Equipment
 01 Mechanical Drum Dumper
 02 Drum Stacking Tilter Dumper
 03 Manual Hydraulic Drum Dumper

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

Unique multi-function: Lifting, carry, turnover, dumping, easily and safety operate.

Tightly lock oil drum at horizontal or vertical position by left and right locking handles so that it will be dumped easily or free of overflow.

It allow to overturn the drum by electric motor and stir it to mix the contents evenly when the locking handle is loosed, and the drum can be maintained at any angle.

A combination of system to ensure that the mouth airfield effective fixation.

Applicable to airport, raiway, postal, industrial enterprises, etc. which can be used as luggage traction, the regional logistics and trans port of various workshop circulation.
Specifications:
Model YL500B YL500B-1
Rated capacity kg 500 500
Max. lifting height mm 1600 1600
Drum size 55 gallon ( (Ø572x900) steel
Powered lifting yes/no yes yes
Drum tilting (electric/manual) electric electric
With weighing scale yes/no no yes
Lifting speed mm/s 120 120
Rotating speed of dumper 180°/30s 180°/30s
Load rollers size mm Ø80x55 Ø80x55
Steering wheel size mm Ø150x50 Ø150x50
Width of legs (Inner/Out) mm 640/800
Leg length mm 630 630
Turning radius mm 1750 1750
Lifting motor power KW 1.5 1.5
Battery V/AH 12/120 12/120
Charger for stacker V 12 12
Charger for weighing scale V 6 6
Overall size(LxWxH) mm 1400x900x2060 1400x900x2060
Net Weight kg 250 255
