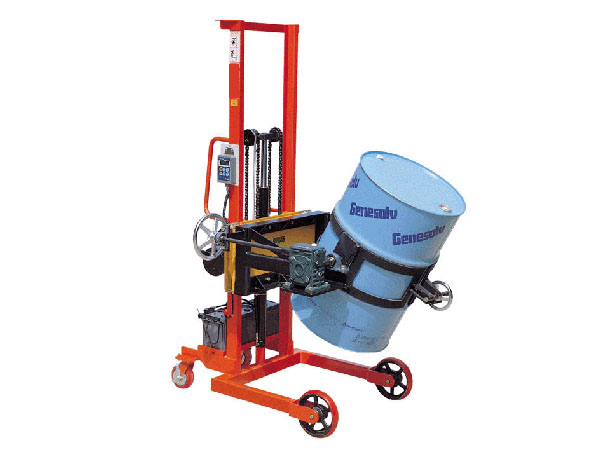

Name:CDS0.35B Electric Drum Truck with Scale
Click to view larger

Products List
Portable Drum Handling Equipment
Forklift Mounted Drum Grab
Forklift or Crane Mounted Drum Handler
Mini Stacker
Work Positioner
Platform Hand Trolley
Access platform
 01 WF Electric Aerial order picker
 02 NK forklift mounted aerial work platform
Below-Hook or Hoist Drum Lifter
Drum and Cylinder Handling Trolley
Pallet Tilter
Hoisting And Lifting Equipment
Reel And Roll Handling Equipment
Mechanical Roll Pallet Truck
Drum Dumping Equipment
Mate Series Lift Trucks
Forklift Attachments

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:
Use for moving, loading and tilting liquid such as dyes, paint, adhesive, oil in chemical industry, food workshop.
Specifications:
Model CDS0.3
Item Name DRUM LIFTER WITH SCALE
Type Electric & Portable type
Capacity 300 kgs.
Accuracy +/- 1/1,000
Display 0.1 kg Unit
Drum size Dia.600mm x H 900mm
Drum Lifting strock 1500mm
Lifting & Tilting Power Hydraulic pump &Worm gear box operated by motor
Load cell 2-point Load cell
Power supply for battery Charger 240V x 50Hz. X 1 ph
Battery Charger Supplier’s Scope
Quantity 1 Set
