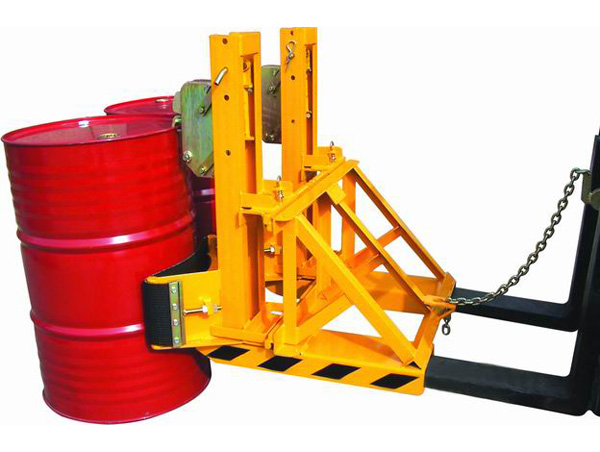

Name:DL Gator Grip Forklift Drum
Click to view larger

Products List
Portable Drum Handling Equipment
 Portable Drum Truck
 Japanese Style Hand Drum Porter
 Hand Drum Porter
 Semi-Electric Hydraulic Stacker
 Manual Drum Mover
 Drum Transporter Handler
 Panel Roll Handling Trolley
 Drum Carrier Dispenser
 Wizard Drum Cradles
 Hand Drum Trolley
 Drum Dolly and Drum Caddy
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:
1.This product converts your forklift truck into a drum handler.
2.Forklift-Carrier can easily lift, transport, raise and tilt loaded the drums.
3.The 10’ pull-chain loop allows the control from the driver’s seat.
Specifications:
Model DL-1 DL-2 DL-3 DL-4
Loading Capacity kg 1x500 2x500 1x900 2x900
Weight kg 130 180 140 190
Overall Size mm 1143x419x991 1143x838x991 1143x419x991 1143x838x991
Max. Drum Diameter mm 600 600 600 600


1. DL-1: Single hook for single drum.
2. DL-2: Two single hooks for double drums.
3. DL-3: Double hooks for single drum.
4. DL-4: Tow double hooks for double drums.
