Products – Mini Stacker

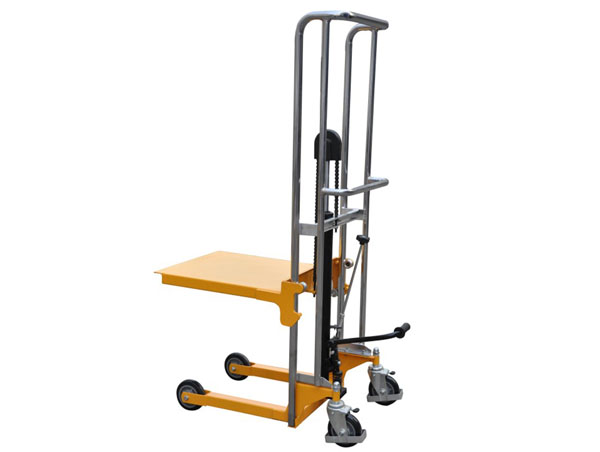

Name：PS manual platform stacker
Click to view larger

Products List
Portable Drum Handling Equipment
Forklift Mounted Drum Grab
Forklift or Crane Mounted Drum Handler
Mini Stacker
 01 Winch Mini Stacker
 02 Manual Hydraulic Mini stacker
 03 Semi-electric Mini Stacker
Work Positioner
Platform Hand Trolley
Access platform
Below-Hook or Hoist Drum Lifter
Drum and Cylinder Handling Trolley
Pallet Tilter
Hoisting And Lifting Equipment
Reel And Roll Handling Equipment
Mechanical Roll Pallet Truck
Drum Dumping Equipment
Mate Series Lift Trucks
Forklift Attachments

 Business Line: 4007-166-180
 Tel：+86 21 58003681
              +86 21 68014500
 Fax：+86 21 68014262
 Website：http://www.sinoliftdrum.com
 Email：drum@sinolift.com
 Skype：sinolift

Feature：
1、Robust construction.
2、Hard chromium plated frame.
3、Effortless Movement.
4、Polyurethane rollers with bearing
5、No-marking castor as standard.
6、Conforms to EN 1757-1.
Specifications：
Model   PS2085A PS2120A PS4085A PS4120A PS4150A
Capacity (kg) 200 200 400 400 400
Platform Height Max. H (mm) 850 1200 850 1200 1500
Platform Height Min. H1 (mm) 200 200 200 200 200
Platform Length L1 (mm) 600 600 650 650 650
Paltform Width W (mm) 500 500 550 550 550
Total Length(PS/EP) L (mm) 940/990 940/990 1040/1070 1040/1070 1040/1070
Total Width B (mm) 560 560 590 590 590
Total Height H2 (mm) 960 1310 970 1310 1610
Steering Rollers-diameter D (mm) Ø125 Ø125 Ø150 Ø150 Ø150
Frame Rollers-diameter d (mm) Ø125 Ø125 Ø150 Ø150 Ø150
Power motor (EP) (KW) 0.8 0.8 0.8 0.8 0.8
Battery(EP) (Ah/V) Dec-60 60/12/ Dec-70 Dec-70 Dec-70
Pump Strokes to Max. Height   14 21 30 45 58
Net Weight(PS/EP) (kg) 53/88 58/93 72/107 78/113 83/118
Noise-free Castor   O O O O O
Previous：MES Semi-electric mini stackerNext：NS & NF manual mini stackerReturn
