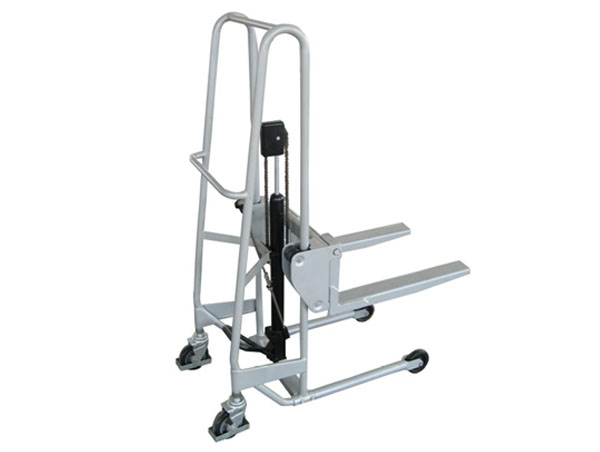

Name:NS & NF manual mini stacker
Click to view larger

Products List
Portable Drum Handling Equipment
Forklift Mounted Drum Grab
Forklift or Crane Mounted Drum Handler
Mini Stacker
 01 Winch Mini Stacker
 02 Manual Hydraulic Mini stacker
 03 Semi-electric Mini Stacker
Work Positioner
Platform Hand Trolley
Access platform
Below-Hook or Hoist Drum Lifter
Drum and Cylinder Handling Trolley
Scissor Lift Platform
Stationary Lift Platform
Pallet Truck
Pallet Tilter
Hoisting And Lifting Equipment
Reel & Roll Handling Equipment
Mechanical Roll Pallet Truck
Drum Dumping Equipment

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:
1、A range of highly manoeuvrable,lightweight lifts,designed to take the strain out of any lifting job from ground level to over shoulder height.
2、Heavy duty design.
Ideal for use in narrow aisles and confined spaces
3、No-marking castor as standard.
4、Quick lift pump provides high effciency.
5、Conforms to EN1757
Specifications:
Model   NS2094 NS2010 NS4012A NS4012B NF2094 NF4012
Type   Platform Platform Platform Platform Fork Fork
Capacity kg 200 200 400 400 200 400
Platform(Fork) Height Max. (mm) 940 1010 1210 1270 940 1210
Platform(Fork) Height Min. (mm) 80 150 90 150 90 90
Platform(Fork) Length (mm) 620 620 670 670 600 700
Single Fork Width (mm) - - - - 60 90
Platform(Fork) Width (mm) 520 520 590 590 130-514 190-572
Total Width (mm) 560 560 620 620 560 620
Total Length (mm) 1087 1087 1190 1190 1097 1270
Total Height (mm) 1290 1315 1610 1635 1290 1610
Steering Rollers-diameter (mm) Ф75 Ф125 Ф75 Ф125 Ф125 Ф125
Frame Rollers-diameter (mm) Ф125 Ф125 Ф125 Ф125 Ф75 Ф75
Pump Strokers to Max. Height Full Load 29 29 63 63 29 63
No Load 29 29 20 20 29 20
Power Pack Motor KW - - - - - -
Battery V/Ah - - - - - -
Net Weight kg 56 58 81 83 55 82
