Products – Drum and Cylinder Handling Trolley

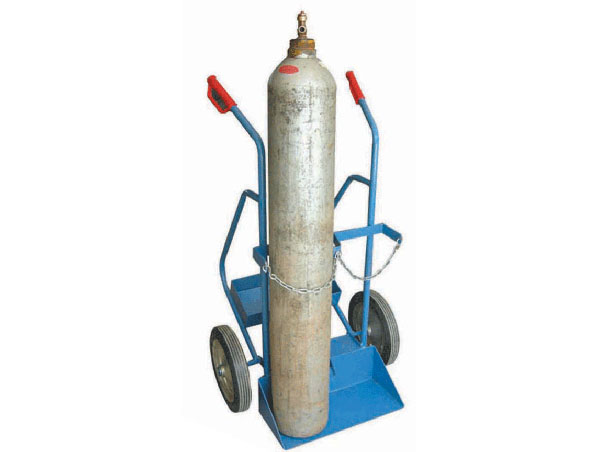

Name:CT20B Gas Cylinder Trolley
Click to view larger

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:
1.CT series cylinder carts with safety handle, Conform with European safety standards
2.Adopt chain protection device
3.use of high-quality solid rubber wheel or pneumatic wheel
4.standard powder coated, galvanized is optional
Specifications:
Model CT20B
Type Two Cylinder
Cylinder Capacity litres 40/50
Cylinder Diameter mm 210-250
Overall Size (LxWxH) mm 770x780x1290
Wheel Size mm ?35 0 Rubber or Penumatic
Support Wheel Size mm ? 200 Rubber or Penumatic
Net Weight kg 45
Minimum Qty. pcs 20

Note: Specification and materials are subject to change without notice.
Previous:CT10 CT20A Cylinder TrolleyNext:ST250 Gas Cyinder TrolleyReturn
