Products – Hydraulic Drum Stacker

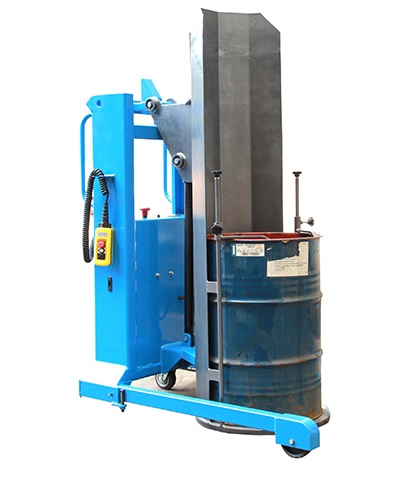

Name：YL400 Portable Drum Dumper
Click to view larger
Diagrams：

Products List
Portable Drum Handling Equipment
Forklift Mounted Drum Grab
Forklift or Crane Mounted Drum Handler
Mini Stacker
Work Positioner
Platform Hand Trolley
Access platform
Below-Hook or Hoist Drum Lifter
Drum and Cylinder Handling Trolley
Pallet Tilter
Hoisting And Lifting Equipment
Reel And Roll Handling Equipment
Mechanical Roll Pallet Truck
Drum Dumping Equipment
Mate Series Lift Trucks
Forklift Attachments

 Business Line: 4007-166-180
 Tel：+86 21 58003681
              +86 21 68014500
 Fax：+86 21 68014262
 Website：http://www.sinoliftdrum.com
 Email：drum@sinolift.com
 Skype：sinolift

Feature：

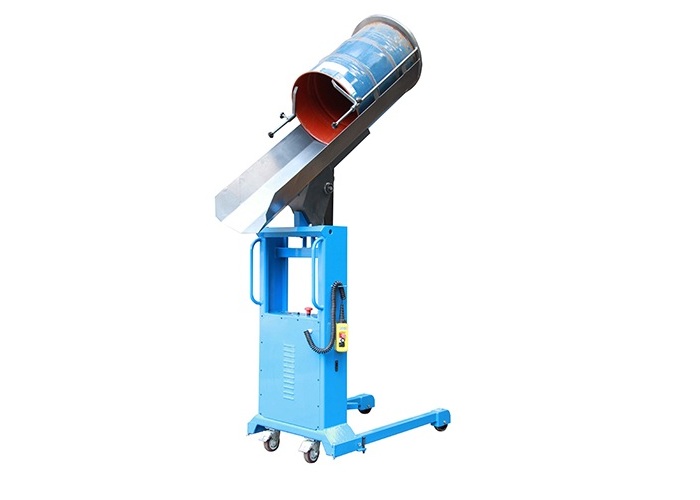

Features a 45° degree tilt angle, our all steel construction LIFT Portable Electric Drum Dumper/ Drum Hauler YL400 can easily work with 30 and 55 gallon plastic, steel, and fiber drums. It is ideal for the dispensing of drum contents at various standard heights. This portable drum dumper is controlled by the push of a button. These models feature steel construction and a solid steel chute, and can dump various drum sizes and are for use with 30- or 55-gallon steel, plastic, or fiber drums.
Main Feature of Electric Drum Dumpers YL400:
1. 45° degree tilt angle
2. Rotary switch control to power chute up
3. Gravity down system with adjustable flow control to safely lower chute;
4. Heavy-gauge carbon steel construction with enamel finish;
5. Adopt integrated hydraulic pump stations and high quality hydraulic oil cylinder;
6. Equipped VARTA maintenance-free battery;
7. Optional AC power;
8. Suitable for dumping all kinds of drums;

Specifications：
Model
Portable Drum Dumpers YL400
Rated load capacity
kg
400
Dumping height
mm
1500
Turning radius
mm
1600
Wheel dimension
mm
φ200*50 φ150*50
Wheel material
/
polyurethane
Pump station power
Kw/h
1.6
Battery data
V/Ah
12/120
Net weight
kg
302
Rotating angle
°
120
