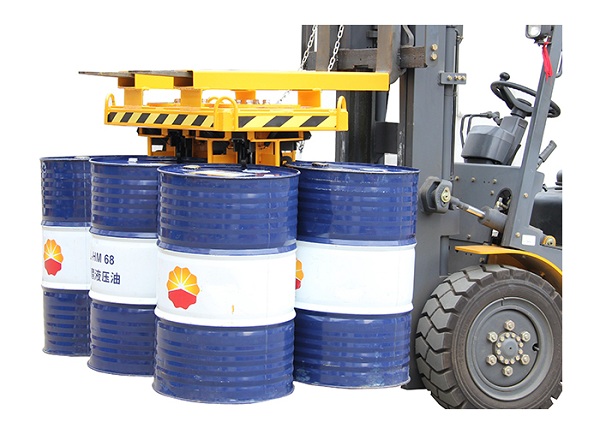

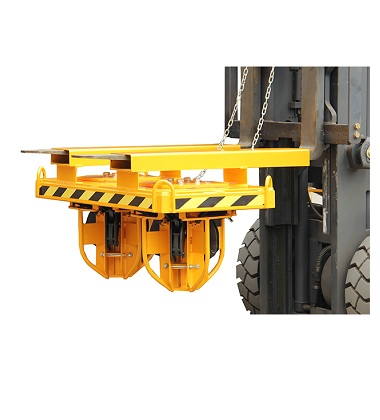

Name:YL6 Forklift and Crane mounted Six Barrels Clamp Hoist
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:
- Ideal for transporting and stacking steel drums, plastic drums and fiber drums;
- Unique Eagle-grip structure, with automatic adjusting core frame, which is speedy and safe;
-All mechanical automatic clamping mechanisms handle from one to six drums at one time without any hydraulic or electrical connections to forklift truck;

Specifications:
Model   YL6
Length mm 1220
Width mm 960
Height mm 630
Service Weight kg 308
Load Capacity kg 500*6
Forks hole outline width mm 780
Forks Hole inner width mm 420
Forks hole size (L*W) mm 175*65
Forks Sleeve Length mm 960
Previous:YL4 YL6 L8 drum clamp hoistNext:YL8 Forklift and Crane use Eight Barrels Clamp HoistReturn
