Products – Drum Dumping Equipment

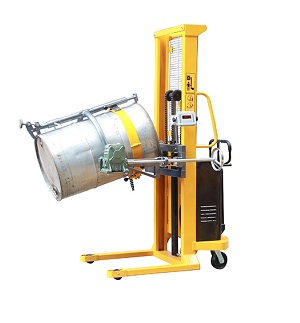

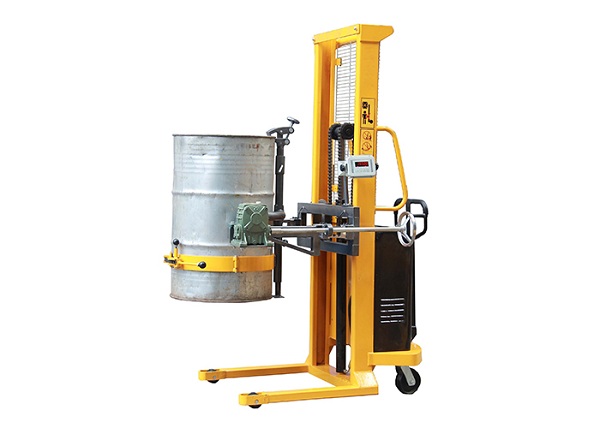

Name：YL520A-1 Semi-Electric Hydraulic Drum Dumper with Scale
Click to view larger
Diagrams：

Products List
Portable Drum Handling Equipment
Forklift Mounted Drum Grab
Forklift or Crane Mounted Drum Handler
Mini Stacker
Work Positioner
Platform Hand Trolley
Access platform
Below-Hook or Hoist Drum Lifter
Drum and Cylinder Handling Trolley
Pallet Tilter
Hoisting And Lifting Equipment
Reel And Roll Handling Equipment
Mechanical Roll Pallet Truck
Drum Dumping Equipment
 01 Mechanical Drum Dumper
 02 Drum Stacking Tilter Dumper
 03 Manual Hydraulic Drum Dumper
Mate Series Lift Trucks
Forklift Attachments

 Business Line: 4007-166-180
 Tel：+86 21 58003681
              +86 21 68014500
 Fax：+86 21 68014262
 Website：http://www.sinoliftdrum.com
 Email：drum@sinolift.com
 Skype：sinolift

Feature：
1. The multifunctional unit has a hand pump that lifts drums from ground level to a raised height of 1500mm (61"), bottom of drum in horizontal position. A gear mechanism will provide a controlled rotation for the drum. A floor lock is standard to stabilize the unit in a fixed position.
2. A 12V DC powered mechanism lifts drums from ground level to a raised height of 1500mm (61".) and capacity of 500kg (1100Lbs).
3. Combined Eagle-grip and Anchor ear structure, suitable for manual hand rotation of steel drums and plastic drums;
4.With electronic scale built-in YL520-1; operational functions include: ZERO, TARE and weighting, of accuracy: ±3‰

Specifications：
Model 　 YL520A-1
Loading Capacity kg 520
Lifting Height mm 1500
Drum size 　 55 gallon ( (Ø572x900) steel, 210L plastic
Wheel Dimension mm Ø80x55 / Ø150x50
Width of Front Leg (Inner/Outer) mm 640/800
Length of Leg mm 630
Turning Radius mm 1620
Lifting Motor kw 1.5
Battery Parameter Ah/V 120/12
Lifting Speed mm/s 120
Outline Dimension LxWxH mm 1400x1000x2080
Net weight kg 260
Previous：YL520A Semi-Electric Hydraulic Drum DumperNext：DA300 Pneumatic Drum DumperReturn
