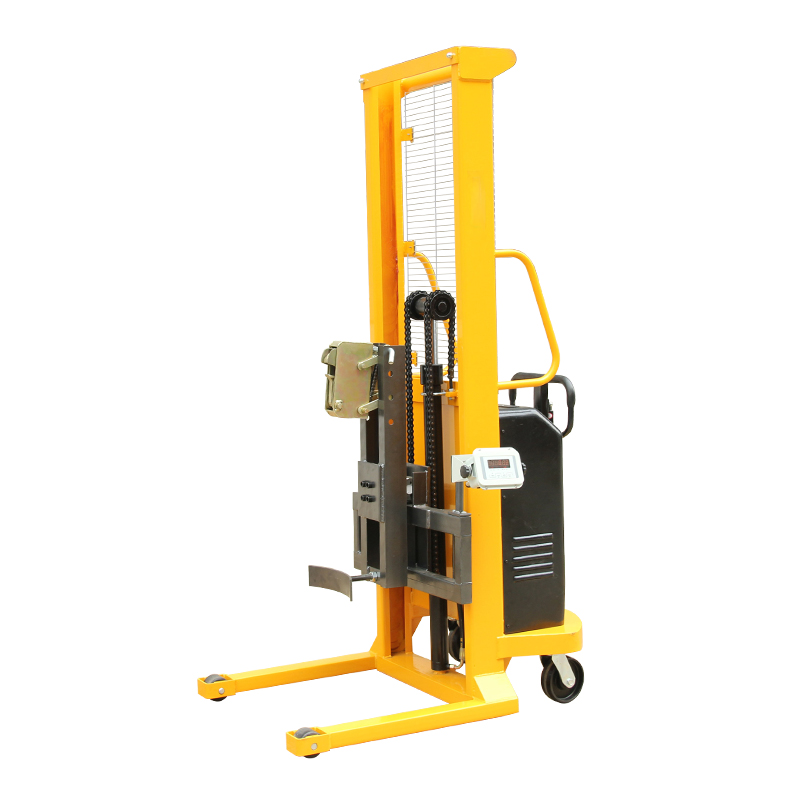

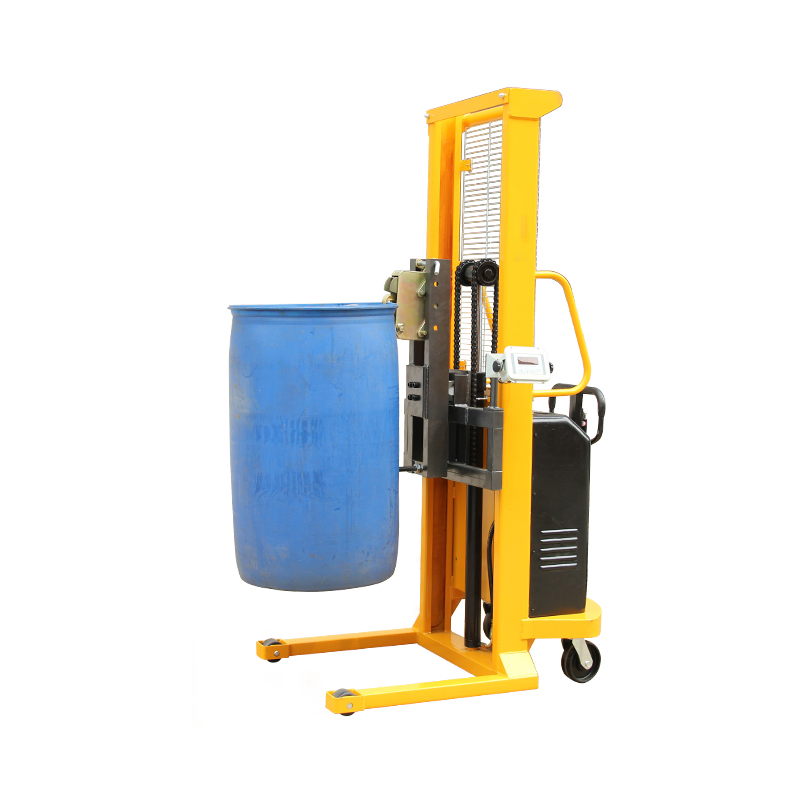

Name:DT500-1 Electric Drum Handler
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
 Portable Drum Truck
 Japanese Style Hand Drum Porter
 Hand Drum Porter
 Semi-Electric Hydraulic Stacker
 Manual Drum Mover
 Drum Transporter Handler
 Panel Roll Handling Trolley
 Drum Carrier Dispenser
 Wizard Drum Cradles
 Hand Drum Trolley
 Drum Dolly and Drum Caddy
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:
Eagle-grip structure, fit for transporting, stacking steel and plastic drums;
With Scale, which can control pouring and measure capabilities, accuracy range: ±3‰;
Optional weighing & print meter;
Specifications:

Model

DT500-1

Rated Capacity

kg

500

Max. Lifting Height

mm

1450

Acceptable Drum Type

steel ,plastic,fiber

Powered Lifting

yes/no

yes

Drum Tilting (electric/manual)

without dumping device

With Weighing Scale

yes/no

yes

Lifting Speed

mm/s

120

Load Rollers Size

mm

Ø80x60

Steering Wheel Size

mm

Ø150x50

Size Between Legs(Inner/Out)

mm

630/810

Leg Length

mm

630

Turning Radius

mm

1750

Lifting Motor Power

KW

1.5

Battery

V/AH

12/120

Charger for Stacker

V

12

Charger for Weighing Scale

V

6

Overall Size(LxWxH)

mm

1500x950x2100

Net Weight

kg

228
