Products – Portable Drum Handling Equipment

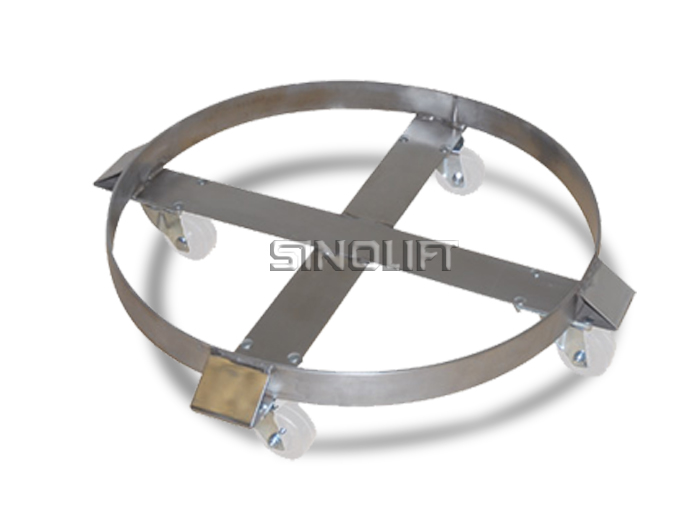

Name：SD55C Drum Dolly
Click to view larger

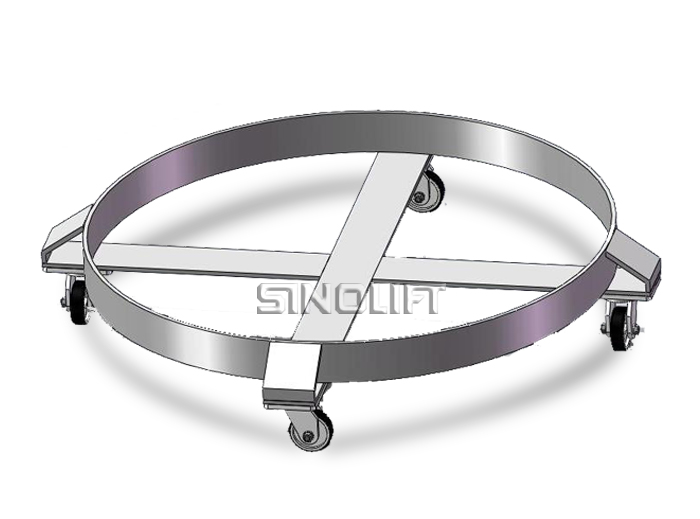

Diagrams：

Products List
Portable Drum Handling Equipment
 Portable Drum Truck
 Japanese Style Hand Drum Porter
 Hand Drum Porter
 Manual Drum Mover
 Drum Transporter Handler
 Drum Carrier Dispenser
 Wizard Drum Cradles
 Hand Drum Trolley
 Drum Dolly and Drum Caddy
Forklift Mounted Drum Grab
Forklift or Crane Mounted Drum Handler
Mini Stacker
Work Positioner
Platform Hand Trolley
Access platform
Below-Hook or Hoist Drum Lifter
Drum and Cylinder Handling Trolley
Pallet Tilter
Hoisting And Lifting Equipment
Reel And Roll Handling Equipment
Mechanical Roll Pallet Truck
Drum Dumping Equipment
Mate Series Lift Trucks
Forklift Attachments

 Business Line: 4007-166-180
 Tel：+86 21 58003681
              +86 21 68014500
 Fax：+86 21 68014262
 Website：http://www.sinoliftdrum.com
 Email：drum@sinolift.com
 Skype：sinolift

Feature：
Sinolift's Stability Advantage. By design, Sinolift casters are mounted past the dolly and drum rim. Our casters are mounted further apart than standard designs with casters completely underneath the drum and closer together. The further the casters are apart the greater the stability.
Welded 304 stainless steel dolly construction with reinforced outriggers.
304 stainless dollies are ideal for clean room, pharmaceutical, food and wash down applications.
Models available for 30, 55, and 85 gallon drums.
Specifications：
Model SD55C
Capacity kg/lbs 410/900
Drum Size gallon 55 gallon steel drum or 210 Plastic Drum
Inside Diameter mm/inch Ø610/Ø23.75
Net Weight kg/lbs 7.2/15
