Products – Portable Drum Handling Equipment

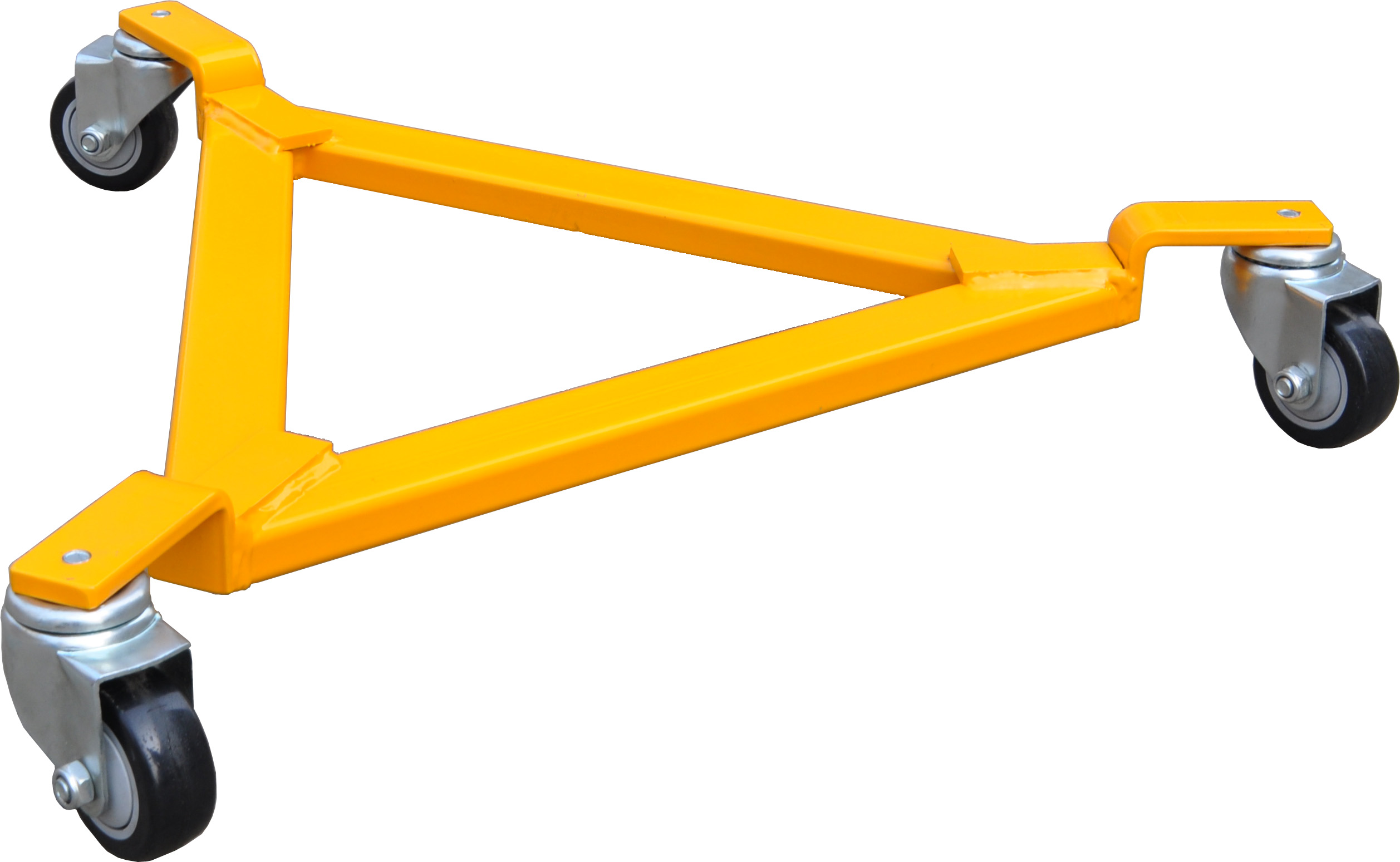

Name:SD55G Drum Dolly
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
 Portable Drum Truck
 Japanese Style Hand Drum Porter
 Hand Drum Porter
 Semi-Electric Hydraulic Stacker
 Manual Drum Mover
 Drum Transporter Handler
 Panel Roll Handling Trolley
 Drum Carrier Dispenser
 Wizard Drum Cradles
 Hand Drum Trolley
 Drum Dolly and Drum Caddy
Drum Dumping Equipment
Hydraulic Drum Stacker
Forklift Mounted Drum Grabber
Forklift and Crane Mounted Drum Handler
Below Hook Drum Lifter
Oil Drum Tool and Accessories
Gas Cylinder Handling Trolley
Mobile Scissor Lift Table
Stationary Lift Platform
Acess Lift Platform
Mini Pallet Stacker
Work Positioner
Platform Hand Trolley
Roll and Reel Handling Equipment
Pallet Tilter
Hoisting and Lifting Equipment
Pallet Truck
Mate Series Lift Trucks
Forklift Attachments

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:
Smooth rolling, strong and durable dollies easily transport 30 or 55 gallon drums.
All welded 3mm×4mm steel frame and 79mm cross straps
Replaceable, heavy-duty zinc plated casters feature single race bearings with 76mm×6.4mm polyolefin tread that resist oil, water and impact.
Zinc plated nuts and bolts
Specifications:

Model SD55G
Capacity kg 280
Drum Size 30 gallon (Ø450x700)-55 gallon ( (Ø572x900) steel, 210L plastic
Overall dimension mm 680x520x130
Wheel size mm Ø75
Net weight kg 8


Previous:SD55F Drum DollyNext:SD85 Drum DollyReturn
