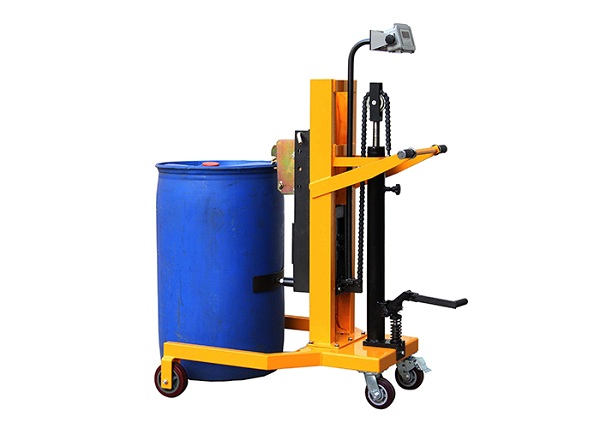

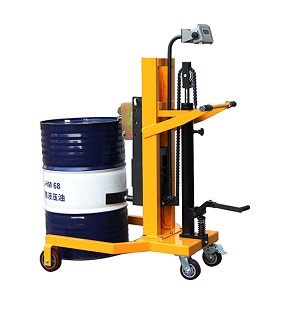

Name：DTF450A-1 Portable Drum Truck With Scale
Click to view larger
Diagrams：

Products List
Portable Drum Handling Equipment
 Portable Drum Truck
 Japanese Style Hand Drum Porter
 Hand Drum Porter
 Manual Drum Mover
 Drum Transporter Handler
 Drum Carrier Dispenser
 Wizard Drum Cradles
 Hand Drum Trolley
 Drum Dolly and Drum Caddy
Forklift Mounted Drum Grab
Forklift or Crane Mounted Drum Handler
Mini Stacker
Work Positioner
Platform Hand Trolley
Access platform
Below-Hook or Hoist Drum Lifter
Drum and Cylinder Handling Trolley
Pallet Tilter
Hoisting And Lifting Equipment
Reel And Roll Handling Equipment
Mechanical Roll Pallet Truck
Drum Dumping Equipment
Mate Series Lift Trucks
Forklift Attachments

 Business Line: 4007-166-180
 Tel：+86 21 58003681
              +86 21 68014500
 Fax：+86 21 68014262
 Website：http://www.sinoliftdrum.com
 Email：drum@sinolift.com
 Skype：sinolift

Feature：
Heavy-duty design of 450 KG loading weight; lift with pedals.
Ergonomic handle is easy and safe to operate with Eagle-gripper structure, fit for operating with30-55 Gallon steel oil drum and 210L PE oil drum.
Excellent-quality oil cylinder, maximum lifting height:600mm and 1100mm.
Automatic clamping tight the oil drum during lifting which is safety and reliable.
With electronic scale built-in; operational functions include: ZERO, TARE and weighting, of accuracy: ±3‰
Applicable for transferring, weighting and on and off scale, etc. of all kinds of oil drums.
Options: Retractable legs, Double eagle grip unique structure.
Specifications：

Model

DTF450A-1

Load Capacity

kg

450

Drum Size

30 Gallon,Steel (Ø450x700), Gallon,Steel(Ø572x900), or 210L Plastic

Lifting Height

mm

600

Outline Dimensions

mm

1080×850×1370

Front Wheel

mm

Φ150×50(PU)

Rear Wheel

mm

Φ125×50(PU)

Inner width of Front Leg

mm

670

Outer Width of Front Leg

mm

850

Self-Weight

kg

120
