Products – Forklift Mounted Drum Grab

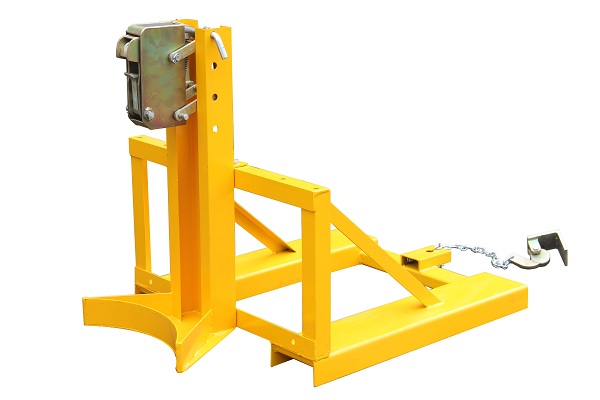

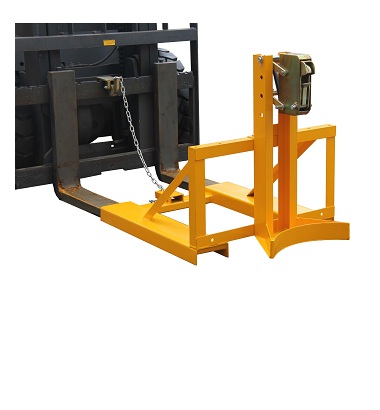

Name:DG360C DG360D DG720C DG720D Forklift Mounted Drum Grab
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Forklift Mounted Drum Grab
 01 Forklift Mounted Single Drum Clamp
 02 Standard Duty Forklift Mounted Drum Handler
 03 Heavy Duty Forklift Mounted Drum Grab
Forklift or Crane Mounted Drum Handler
Mini Stacker
Work Positioner
Platform Hand Trolley
Access platform
Below-Hook or Hoist Drum Lifter
Drum and Cylinder Handling Trolley
Pallet Tilter
Hoisting And Lifting Equipment
Reel And Roll Handling Equipment
Mechanical Roll Pallet Truck
Drum Dumping Equipment
Mate Series Lift Trucks
Forklift Attachments

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:
Grab, lift, move and place drums without the operator leaving driver's seat.

Completely Mechanical and Automatic drum grab requires no hydraulic or electrical connections.

Automatic clamping mechanism for handling steel and plastic drums in high volume applications.

Carriage mounted models are available to mount directly on the carriage of most lift trucks for tight aisle applications.

Can handle 1 or 2 drums simultaneously.

Totally enclosed fork pockets with attached safety chain and cam lock secures attachment to lift truck.

Single-Grip type grabs.

Specifications:
Model DG360C DG720C
Capacity kg 360 360*2
Net Weight kg 52 70
Overall Size mm 1030*760*850  1030*1020*850
Load Center mm 1150 1150
Grab Min. Height mm 525 525
Grab Max. Height mm 750 750
Grab Middle Height mm 600--675 600--675
Foks leg (length*width) mm 157*55 157*55
Straddle inner Width mm 425 425
Staddle outline Width mm 750 750
Straddle Length(mm) mm 750 750
