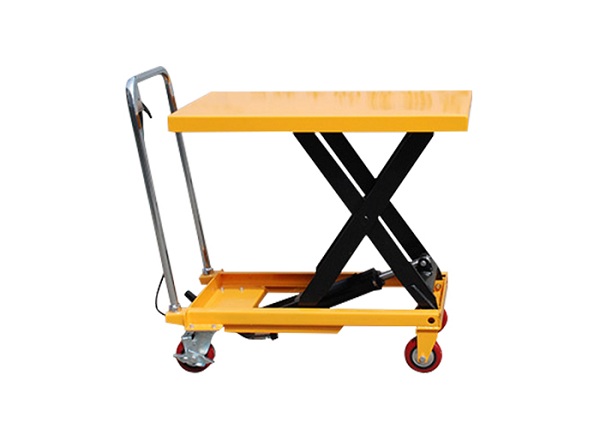

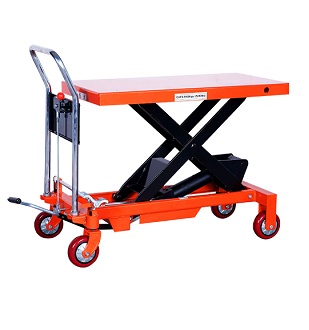

Name:PT800B PT1000B Single Scissor Table Lift
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
 Portable Drum Truck
 Hand Drum Porter
 Manual Drum Carrier
 Drum Handler
 Drum Dispenser
 Wizard Drum Cradles
 Hand Drum Trolley
 Drum Dolly and Drum Caddy
Forklift Mounted Drum Grab
Forklift or Crane Mounted Drum Handler
Mini Stacker
Work Positioner
Platform Hand Trolley
Access platform
Below-Hook or Hoist Drum Lifter
Drum and Cylinder Handling Trolley
Scissor Lift Platform
Stationary Lift Platform
Pallet Truck
Pallet Tilter
Hoisting And Lifting Equipment
Reel & Roll Handling Equipment
Mechanical Roll Pallet Truck
Drum Dumping Equipment

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:
1.Valuable material handling for use as a feeding table on assembly line.

2.Structural heavy duty steel construction.

3.Easy action foot operated hydraulic lift for raising table top to desired level.

4.Robust castors with safety wheel guard and brakes on the two swivel castors, for greater safety wheel loading and unloading.

5.Hand operated table descent control.

6. Over load by-pass valve protects operator and pump.

7.Option: chrome plated handle, painted handle, folding handle & solid handle.


Specifications:

Model



PT800B

PT1000B

Load Capacity

kg

800

1000

Min. Height

mm

415

415

Max. Height

mm

1000

1000

Table Dimension

mm

1016*510*60

1016*510*60

Dia.of the wheel

mm

Φ150

Φ150

Net Weight

kg

100

100

Packing Dimensions

mm

1140*570*425

1140*570*425

Load in 20'Container

pc

80

80
