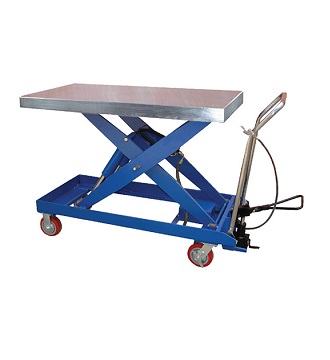

Name:CYT1000Y Scissors Pneumatic Table Lift
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Forklift Mounted Drum Grab
Forklift or Crane Mounted Drum Handler
Mini Stacker
Work Positioner
Platform Hand Trolley
Access platform
Below-Hook or Hoist Drum Lifter
Drum and Cylinder Handling Trolley
Scissor Lift Platform
 01 Hand Hydraulic Table Lift
 02 Double Scissors Hydraulic Table Lift
 03 Three Scissors Hydraulic Table Lift
 04 Pneumatic Table Lift
 05 Semi-Electric Table Lift
 06 Full Electric Table Lift
 07 Post Lift Table
Stationary Lift Platform
Pallet Truck
Pallet Tilter
Hoisting And Lifting Equipment
Reel & Roll Handling Equipment
Mechanical Roll Pallet Truck
Drum Dumping Equipment

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

1. Valuable material handling for use as a feeding table on assembly line.

2.Structural heavy duty steel construction.

3. Easy action foot operated hydraulic lift for raising table top to desired level.

4. Robust castors with safety wheel guard and brakes on the two swivel castors, for greater safety wheel loading and unloading.

5. Hand operated table descent control.

Specifications:

Model




CYT1000Y

Load capacity

kg

1000

Min.height

mm

380

Max.height

mm

1000

Table dimension

mm

1200×610×55

Length

mm

1600

Length of handle

mm

1000

Net weight

kg

170

Previous:CYT750Y Scissors Pneumatic Table LiftNext:CYTS350Y Scissors Pneumatic Table LiftReturn
