Products – Scissor Lift Platform

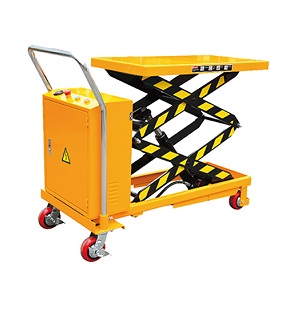

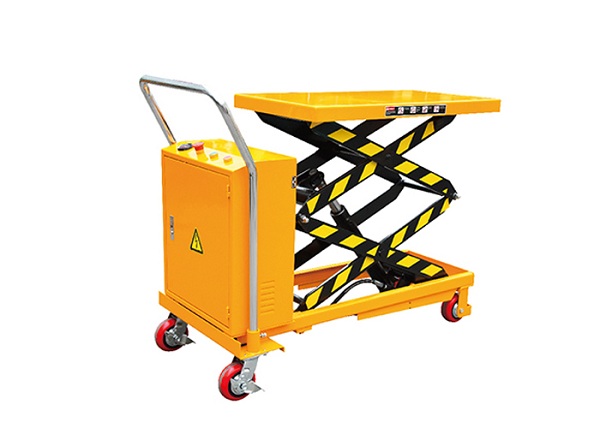

Name:DPS800 DPS1000 Double Scissors Electric Table Lift
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Forklift Mounted Drum Grab
Forklift or Crane Mounted Drum Handler
Mini Stacker
Work Positioner
Platform Hand Trolley
Access platform
Below-Hook or Hoist Drum Lifter
Drum and Cylinder Handling Trolley
Pallet Tilter
Hoisting And Lifting Equipment
Reel And Roll Handling Equipment
Mechanical Roll Pallet Truck
Drum Dumping Equipment
Mate Series Lift Trucks
Forklift Attachments

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

1. Valuable material handling for use as a feeding table on assembly line.

2.Structural heavy duty steel construction.

3. Easy action foot operated hydraulic lift for raising table top to desired level.

4. Robust castors with safety wheel guard and brakes on the two swivel castors, for greater safety wheel loading and unloading.

5. Hand operated table descent control.

Specifications:

Model



DPS800

DPS1000

Load capacity

kg

800

1000

Min.height

mm

500

500

Max.height

mm

1700

1700

Table dimension

mm

1200*610*50

1200*610*50

Dia.of the wheel

mm

150

150

Voltage

v

12

12

Power

w

0.8

1.6

Storage Battery

Ah

120

120

Charger input Voltage

v

220/110

220/110

Net weight

kg

290

290

Previous:DPS350 Double Scissors Electric Table LiftNext:EPT400 EPT400S Full Electric Table LiftReturn
