Products – Scissor Lift Platform

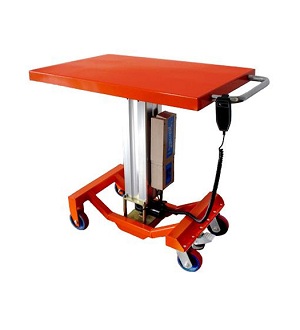

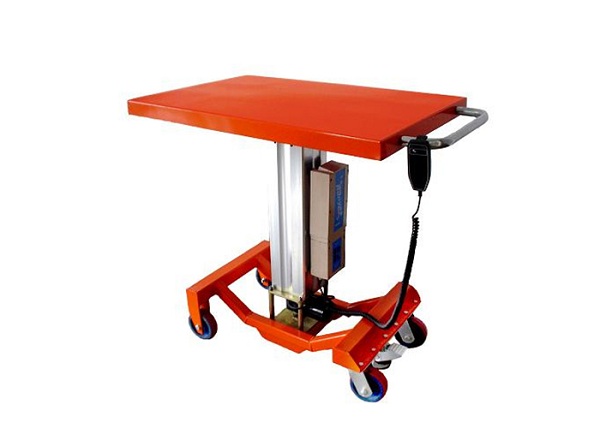

Name:PTE Electric Lift Table
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Forklift Mounted Drum Grab
Forklift or Crane Mounted Drum Handler
Mini Stacker
Work Positioner
Platform Hand Trolley
Access platform
Below-Hook or Hoist Drum Lifter
Drum and Cylinder Handling Trolley
Scissor Lift Platform
 01 Hand Hydraulic Table Lift
 02 Double Scissors Hydraulic Table Lift
 03 Three Scissors Hydraulic Table Lift
 04 Pneumatic Table Lift
 05 Semi-Electric Table Lift
 06 Full Electric Table Lift
 07 Post Lift Table
Stationary Lift Platform
Pallet Truck
Pallet Tilter
Hoisting And Lifting Equipment
Reel & Roll Handling Equipment
Mechanical Roll Pallet Truck
Drum Dumping Equipment

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

1.Foot-operated hydraulic lift tables for heavy duty shop.

2.Auto two speed manual hydraulic foot pump for maximum operation comfort and producting.

3.DC electric motor to automatically raise and lower the platform is available.

4.All models includes: casters, two rigid and tow swivel with wheel brakes.

Specifications:

Model




PTE2036

PTE2436

Load Capacity

kg

500

1000

Lowest height

mm

865

865

Max. Height

mm

1320

1320

Table Dimension

mm

510x762

610x915

Net Weight

kg

90

102

Packing Dimensions

mm

930x780x550

930x780x550
