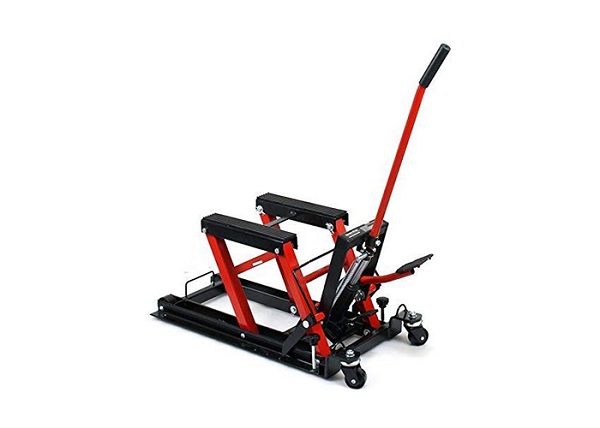

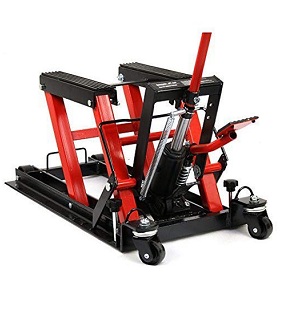

Name:ET10DC (MXC43) Hydraulic Motorcycle Lift
Click to view larger
Diagrams:

Products List
Portable Drum Handling Equipment
Forklift Mounted Drum Grab
Forklift or Crane Mounted Drum Handler
Mini Stacker
Work Positioner
Platform Hand Trolley
Access platform
Below-Hook or Hoist Drum Lifter
Drum and Cylinder Handling Trolley
Scissor Lift Platform
Stationary Lift Platform
 01 Hydraulic Motorcycle Lift
 02 Pneumatic Motorcycle Lift
 03 Electric Stationary Lift Table
 04 Circular Rotating Lift Table
 05 Electric Load and Unloading Lift Table
 06 Electric Scissors lift Elevator
Pallet Truck
Pallet Tilter
Hoisting And Lifting Equipment
Reel & Roll Handling Equipment
Mechanical Roll Pallet Truck
Drum Dumping Equipment

 Business Line: 4007-166-180
 Tel:+86 21 58003681
              +86 21 68014500
 Fax:+86 21 68014262
 Website:http://www.sinoliftdrum.com
 Email:drum@sinolift.com
 Skype:sinolift

Feature:

1.Heavy duty design for professional applications.
2.Easily to lift by foot operated hydraulic pump.
3.Latest design of scissor structure ensures durability and stability.
4.The operator’s safety is ensured by a overload valve and mechanical stopping devices that are always engaged, both lifting and lowering can be stopped at any position still keep the conditions of stability and safety unchanged.
5.This lift is equipped with a special mechanical vice to block the front wheel.
6.Platform is completed with an extractable panel to facilitate dismounting of the back wheel without being obliged to remove the lifting slide.
7.A built-in overload valve in high quality hydraulic pump.


Specifications:

Model



ET10DC

Rated capacity

kg

550

Min.height

mm

110

Max.height

mm

430

Table dimension

mm

370x360

Net weight

kg

45

Overall size

mm

920x640x150
